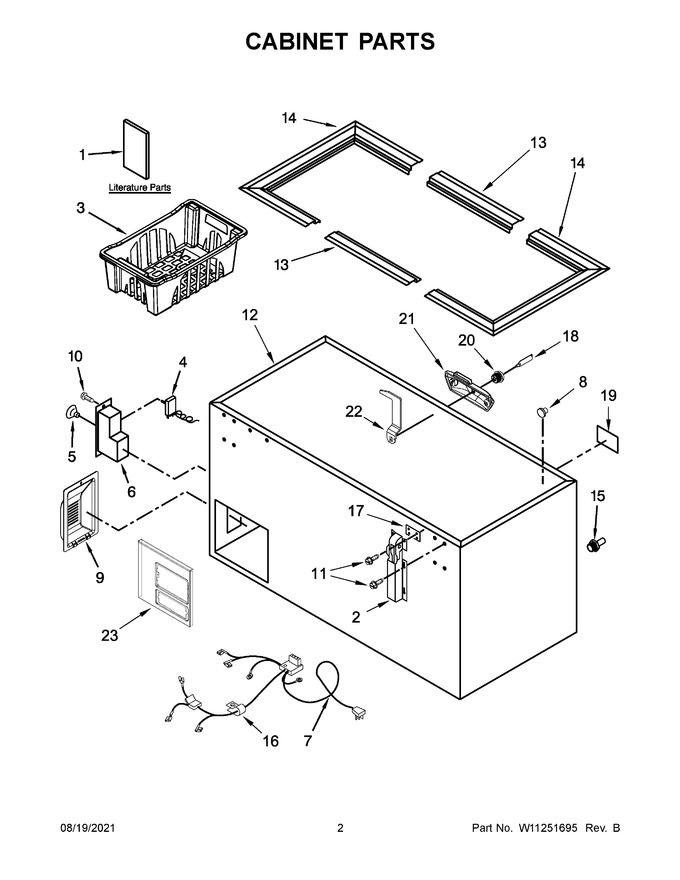

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10668402		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge Assembly   (Replaces: W11043771)				$ 164.89
3	W11553315		Basket, Upper   (Replaces: W10812045)				$ 88.53
4	435940001		Thermostat		Appelez-nous	-
5	W10738934		Knob, Thermostat		Appelez-nous	-
6	W10682894		Control Box		Appelez-nous	-
7	W10631222		Wiring Harness				$ 137.61
8	333211001		Plug, Drain		Appelez-nous	-
9	W10574468		Panel, Access				$ 24.78
10	324004049		Screw		Appelez-nous	-
11	7101P35660		Screw		Appelez-nous	-
12	NP		Refrigerant Charge 5.75 Oz. (r-134a)		Appelez-nous	-
13	W11251043		Strip, Rear Breaker   (Replaces: W10763609)		Appelez-nous	-
14	W11045300		Strip, End Breaker   (Replaces: W10803246)				$ 80.74
15	133178		Adapter, Drain		Appelez-nous	-
16	549193		Clamp, Power Cord				$ 12.05
17	117548006		Spacer, Hinge		Appelez-nous	-
18	W10838052		Key   (Replaces: W10668135)				$ 34.86
19	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
20	W10664016		Barrel, Lock				$ 107.20
21	W10711162		Housing, Lock				$ 30.12
22	W10714897		Latch, Lock				$ 25.44
23	W10574443		Enclosure		Appelez-nous	-
1A	W11115926		Energy Guide		Appelez-nous	-
1B	W10723826		Tech Sheet		Appelez-nous	-
