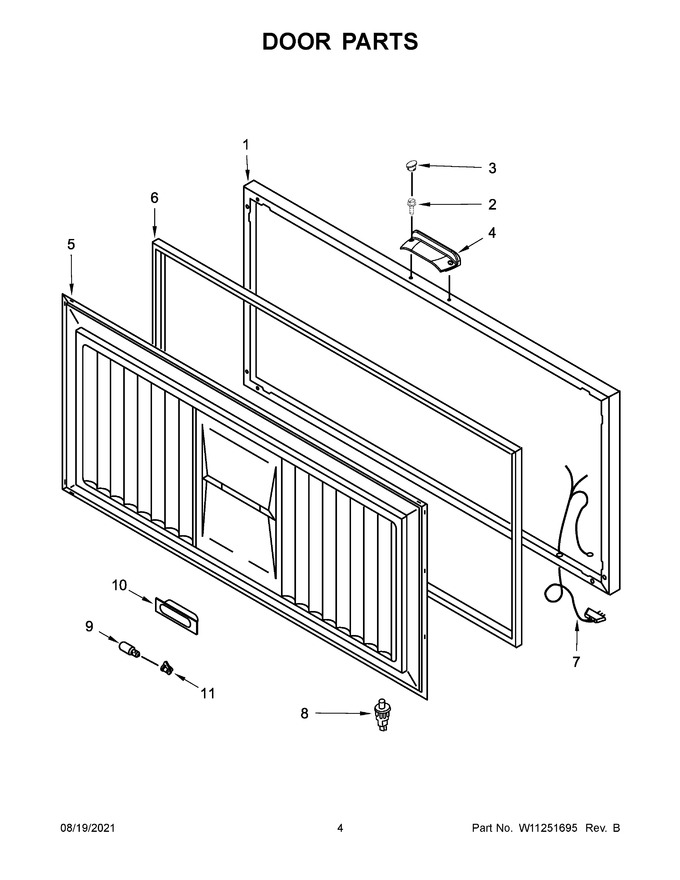

03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10688624		Lid (includes Insulation)				$ 296.02
2	380732007		Screw		Appelez-nous	-
3	W10712378		Cover, Screw Handle				$ 15.16
4	W10852738		Handle, Door (white)   (Replaces: W10711161)				$ 33.90
5	W10688358		Liner, Door		Appelez-nous	-
6	435260006		Gasket, Door (white)		Appelez-nous	-
7	W10628810		Wire Harness				$ 63.23
8	335645001		Switch, Light		Appelez-nous	-
9	W10873798		Bulb, Light   (Replaces: W10809514)			Immediately	$ 12.53
10	325693001		Reflector, Light		Appelez-nous	-
11	WPW10191429		Socket, Light   (Replaces: W10191429)				$ 7.54
