01 - Cover Sheet

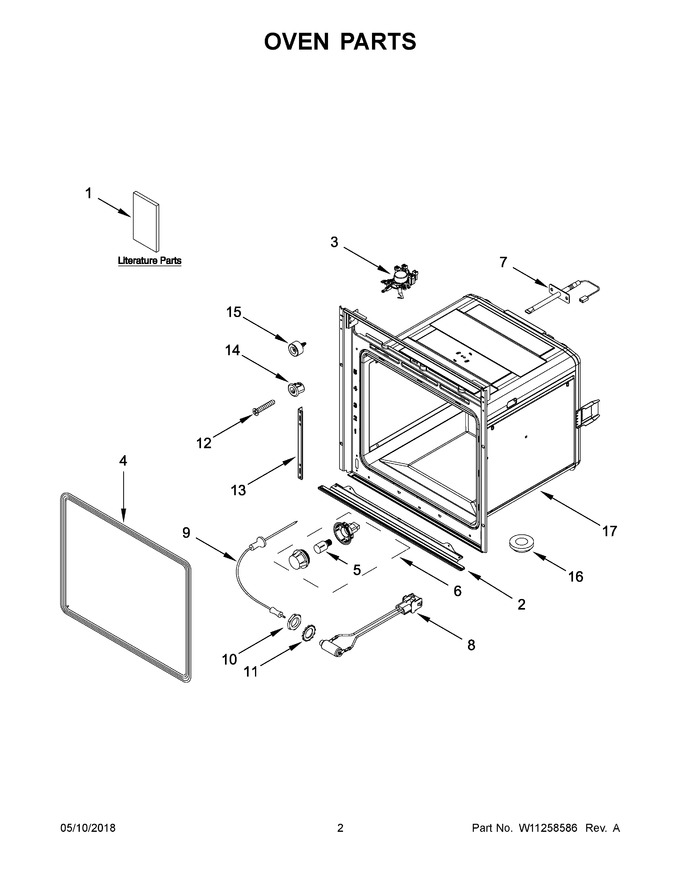

02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 501971002095 | Installation Instructions |
|
- | |||||
| 2 | W10517979 | Trim, Lower |
|
Immediately | $ 59.66 | ||||
| 3 | W11259381 | Latch, Door |
|
Immediately | $ 264.08 | ||||
| 4 | W10518387 | Gasket, Door |
|
$ 158.97 | |||||
| 5 | W11791037 | Bulb, Halogen 40 Watt (Replaces: W10518971) |
|
$ 30.96 | |||||
| 6 | W11237410 | Assembly, Bulb Includes Socket And Lens Cover (Replaces: W10638530) |
|
Immediately | $ 20.28 | ||||
| 7 | W10518975 | Sensor, Temperature |
|
Immediately | $ 202.08 | ||||
| 8 | W11237411 | Socket, Meat Probe With Harness (Replaces: W10634657) |
|
- | |||||
| 9 | W10518976 | Probe, Meat |
|
$ 49.01 | |||||
| 10 | W10519007 | Nut, Meat Probe 10x1.57 |
|
- | |||||
| 11 | W10519008 | Washer, Meat Probe |
|
- | |||||
| 12 | W10519011 | Kit, Oven Screws |
|
$ 39.79 | |||||
| 13 | W10517968 | Hinge, Running Mechanism |
|
- | |||||
| 14 | W10519010 | Bumper, Oven |
|
$ 16.47 | |||||
| 15 | W10519005 | Bumper, Oven Door |
|
- | |||||
| 16 | W10545973 | Foot, Level Oven |
|
- | |||||
| 17 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 1A | 400010890404 | Use And Care Guide |
|
- | |||||
| 1B | W11085293 | Wiring Diagram |
|
- | |||||
| NI | W11237388 | Kit, Power Cord (no Plug) (Replaces: W10472786) |
|
$ 106.97 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
