01 - Cover Sheet
02 - Oven Parts

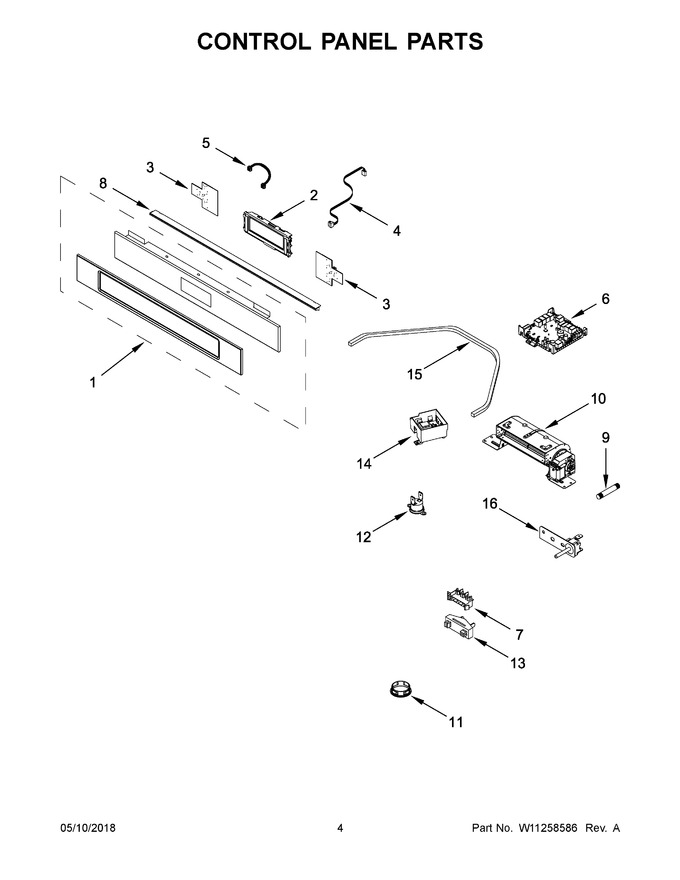

03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10517904 | Panel, Control Front Panel And Glass |
|
$ 276.74 | |||||
| 2 | W11259390 | Pcba, Display |
|
$ 503.43 | |||||
| 3 | W11231664 | Pcba, Touch Sensor (Replaces: W10777690) |
|
$ 194.26 | |||||
| 4 | W10517879 | Harness, Touch Display |
|
$ 177.30 | |||||
| 5 | W10517885 | Harness, Display To Power Unit |
|
$ 177.30 | |||||
| 6 | W11259046 | Board, Power Antares (Replaces: W10742185) |
|
$ 419.46 | |||||
| 7 | W10518946 | Block, Terminal |
|
$ 59.37 | |||||
| 8 | W10517985 | Vent, Trim Control Panel |
|
$ 98.60 | |||||
| 9 | W10518970 | Fuse, 315ma |
|
$ 4.80 | |||||
| 10 | W10517960 | Blower, Cooling Fan |
|
$ 321.17 | |||||
| 11 | W10518942 | Grommet, Cable |
|
- | |||||
| 12 | W11259047 | Thermostat, 155 Celcius (with Bracket) (Replaces: W10490220) |
|
Immediately | $ 169.52 | ||||
| 13 | W10516534 | Clamp, Cable |
|
- | |||||
| 14 | WPW10518967 | Interface, Meat Probe (Replaces: W10518967) |
|
$ 442.01 | |||||
| 15 | W10519009 | Gasket, Blower Motor |
|
- | |||||
| 16 | W11791034 | Thermostat (Replaces: W10532969) |
|
$ 28.04 |
