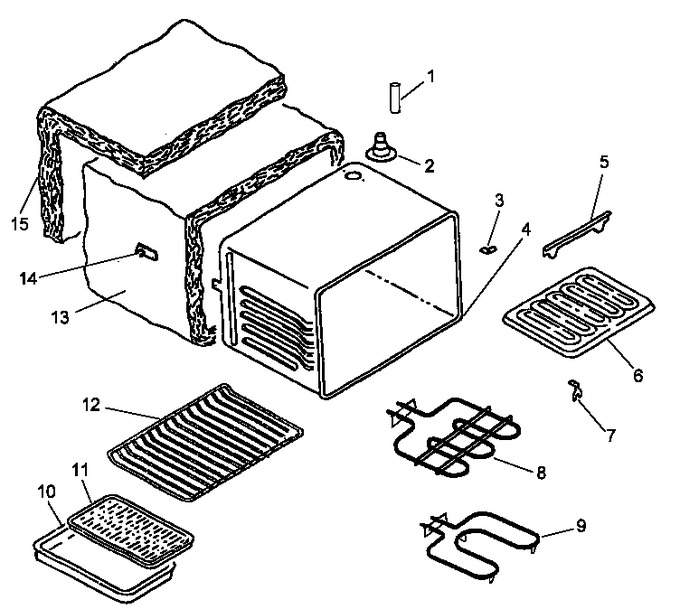

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0063336		Tube, Vent Ext.		Appelez-nous	-
2	Y0058526		Smoke Eliminator		Appelez-nous	-
3	Y0315022		Cover, Chip		Appelez-nous	-
4	58788CG		Oven Shell (el. W/lt)		Appelez-nous	-
5	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
6	Y0308294		Reflector, Broil Element		Appelez-nous	-
7	0061556		Bracket, Mounting		Appelez-nous	-
8	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
9	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
10	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
11	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
12	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
13	0300973		Insulation, Wrapper		Appelez-nous	-
14	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
15	Y0300974		Insulation, Rear		Appelez-nous	-
NI	Y0097822		Rivet, Pop		Appelez-nous	-
