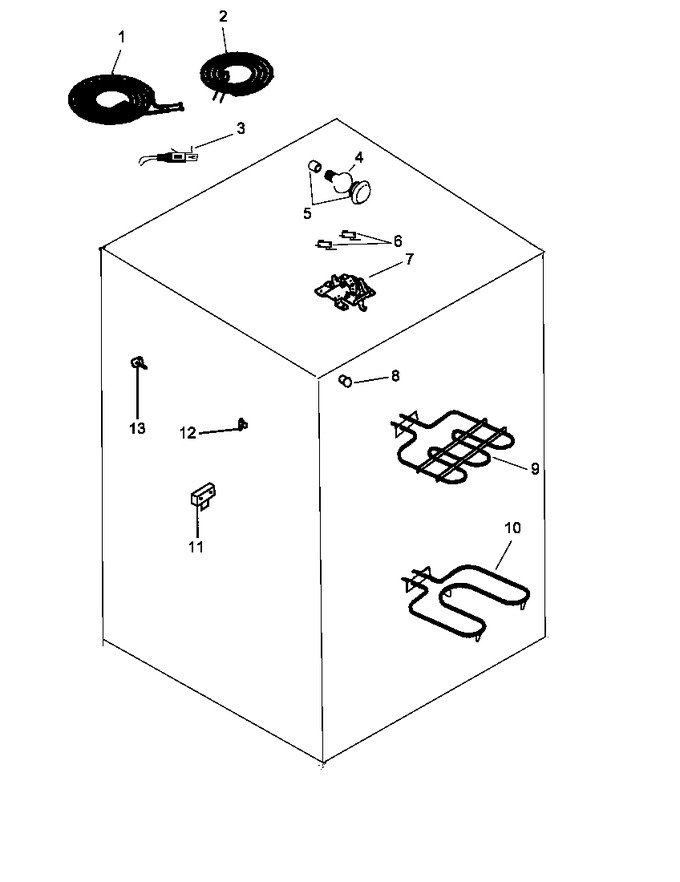

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Backguard Assy
02 - Cavity Assy
03 - Door Assy
04 - Electrical Components
05 - Main Top Assy
06 - Oven Assy
07 - Storage Drawer Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: Y0304871) |
|
Immediately | $ 105.92 | ||||
| 2 | WPW10259868 | Element, 4 Turn 1500w 6`` (Replaces: Y0051576) |
|
Immediately | $ 112.28 | ||||
| 3 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| 4 | Y0042175 | Bulb, Light |
|
- | |||||
| 5 | WP74011278 | Assy, Oven Light (Replaces: 74011278) |
|
$ 101.56 | |||||
| 6 | Y0314277 | Switch, Door Latch |
|
- | |||||
| 7 | Y0309430 | Latch, Oven Door |
|
- | |||||
| 8 | Y0305797 | Switch, Oven Door |
|
- | |||||
| 9 | WPY0061732 | Element, Broil (240v-3000w) (Replaces: Y0061732) |
|
$ 158.37 | |||||
| 10 | WP77001094 | Element, Bake (240v-2500w) (Replaces: Y0059552) |
|
Immediately | $ 39.58 | ||||
| 11 | WP8203546 | Terminal Block (Replaces: Y0306378) |
|
Immediately | $ 27.12 | ||||
| 12 | Y0053584 | Switch, Hi Limit |
|
- | |||||
| 13 | WPY0314907 | Sensor, Temperature (Replaces: Y0314907) |
|
$ 201.45 | |||||
| NI | Y0072270 | Screw, Grounding |
|
- | |||||
| NI | WPW10245259 | Strap, Ground (Replaces: Y0306379) |
|
Immediately | $ 31.65 | ||||
| NI | 0306381 | Hex Nut No.10-32 Nickel |
|
- |
