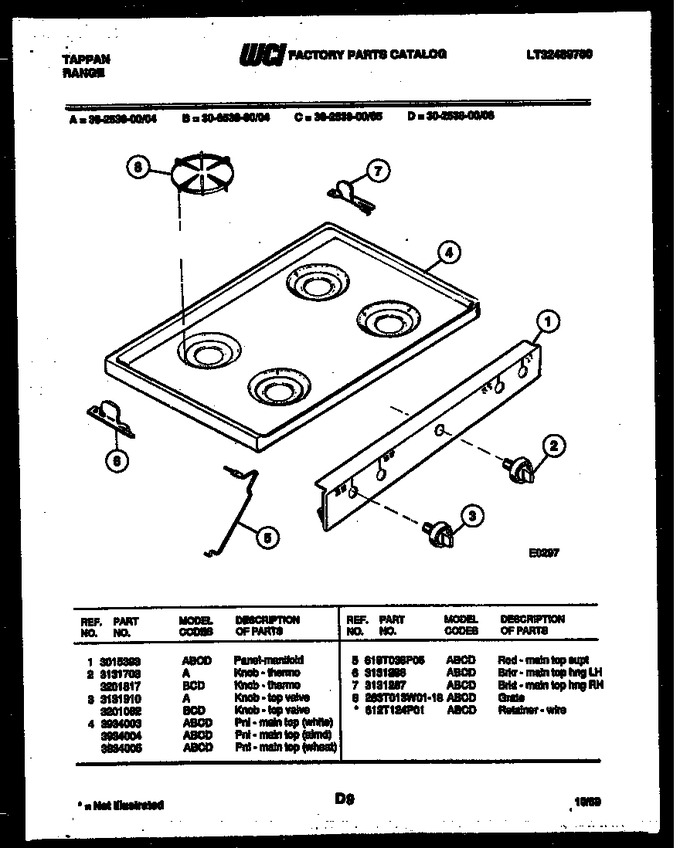

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015393 | Panel-manifold |
|
- | |||||
| 2 | 3201817 | Knob - Thermo |
|
- | |||||
| 3 | 3201082 | Knob - Top Valve |
|
- | |||||
| 4 | 3934004 | Pnl Main Top-almd |
|
- | |||||
| 4 | 3934005 | Pnl Main Top (wheat) |
|
- | |||||
| 4 | 3934003 | Pnl Main Top-white |
|
- | |||||
| 5 | 618T038P05 | Rod-main Top Supt. |
|
- | |||||
| 6 | 3131286 | Brkr - Main Top Hng Lh |
|
- | |||||
| 7 | 3131287 | Brkt Main Top Hng Rh |
|
- | |||||
| 8 | 283T013W01-18 | Grate |
|
- | |||||
| *33441 | 612T124P01 | Retainer - Wire |
|
- |
