Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 3131208 Insul.-oven Door Appelez-nous -
3 3051152 Glass, Front Appelez-nous -
4 3131345 Handle Appelez-nous -
5 3202147 Liner-oven Door Appelez-nous -
6 3051225 Seal Non S/c Door Appelez-nous -
7 3202148 Shield-wool Appelez-nous -
8 3131323 Support, Glass (2) Appelez-nous -
9 3051728 Trim, Oven Door Appelez-nous -
10 3016420 Screw - Handle (2) Appelez-nous -
11 3131974 Fstnr. Spacer (6) Appelez-nous -
12 241T017P174 Fstnr-spacer (3) Appelez-nous -
13 3934033 Seal, Foam Appelez-nous -
14 276T088P13 Glass-oven Dr Rear Appelez-nous -
15 3131720 Clip, Retainer Appelez-nous -
16 3015373 Cover-door Liner Appelez-nous -
17 3131206 End Cap Appelez-nous -
13A 3131573 Screw (3) (non-illustrated) Appelez-nous -
13A 636T143P01 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

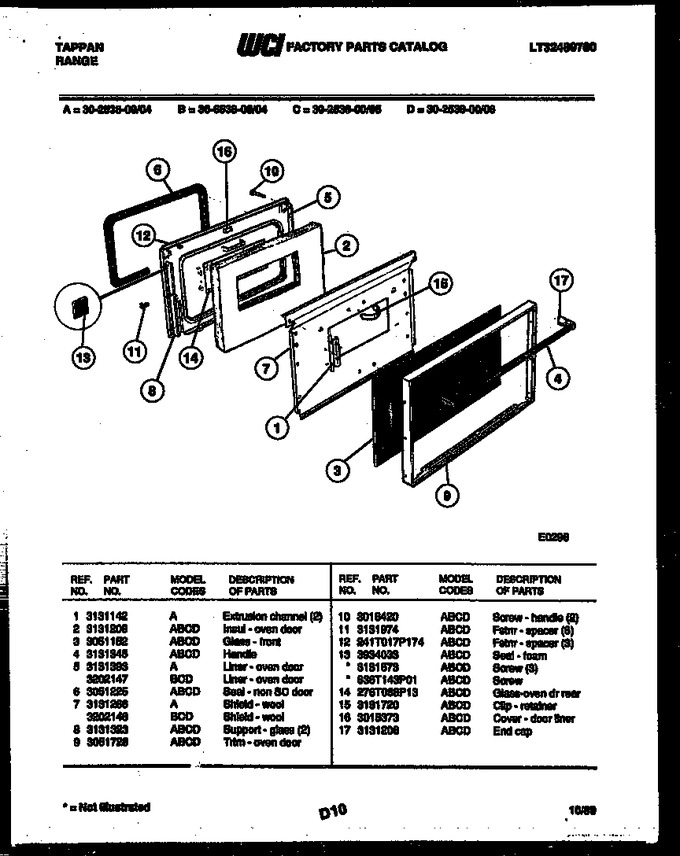

Diagram for 30-2538-66-06
