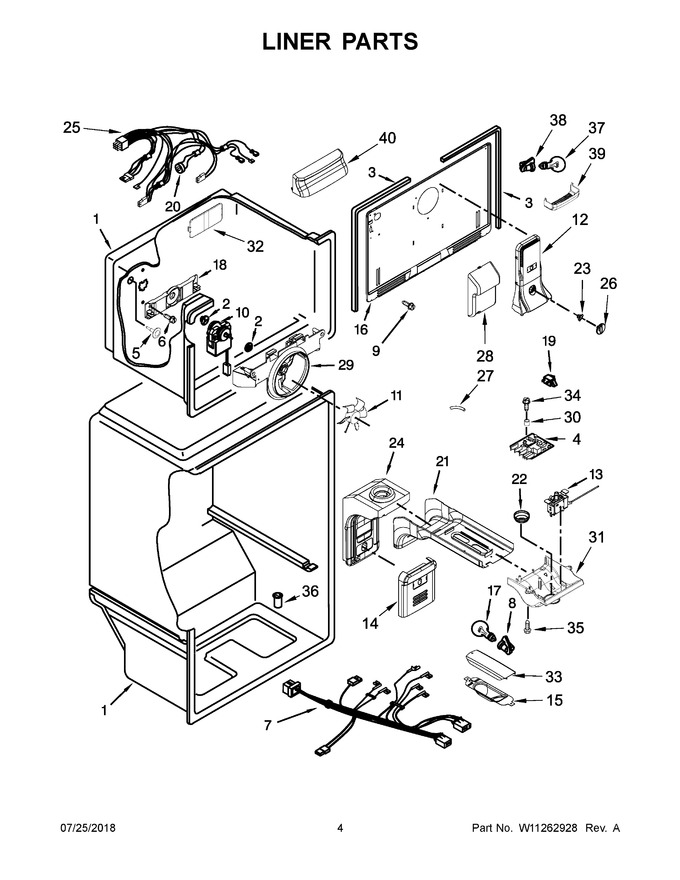

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 24.10 | |||||
| 4 | WPW10352689 | Control, Adaptive Defrost (Replaces: W10352689) |
|
$ 269.73 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W10576428 | Wire Assembly, Control Box |
|
$ 42.06 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 8.86 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 74.93 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W11126274 | Air Tower Assembly, Fc (Replaces: W10654834) |
|
$ 147.43 | |||||
| 13 | W10866230 | Assembly, Thermostat (Replaces: W10610070) |
|
$ 189.62 | |||||
| 14 | W10609502 | Cup, Air Diffuser |
|
$ 34.19 | |||||
| 15 | W10300161 | Shield, Light |
|
Immediately | $ 82.82 | ||||
| 16 | W10616173 | Cover, Evaporator |
|
$ 147.11 | |||||
| 17 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 38.92 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 98.02 | |||||
| 22 | W10716304 | Knob, Control |
|
- | |||||
| 23 | W11206112 | Baffle, Air Manual (Replaces: W10662269) |
|
$ 73.32 | |||||
| 24 | W11829838 | Multiflow Assembly (Replaces: W10883330) |
|
$ 66.29 | |||||
| 25 | W11561072 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces: W10336529) |
|
$ 82.67 | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | WP2196003 | Tube, Thermostat Barrier (Replaces: W10381575) |
|
$ 7.16 | |||||
| 28 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 6.47 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W10418502 | Spacer |
|
- | |||||
| 31 | W10316941 | Box, Control |
|
$ 84.50 | |||||
| 32 | W10336009 | Cup, Screw |
|
$ 66.34 | |||||
| 33 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 101.11 | |||||
| 34 | W10141596 | Screw |
|
$ 7.90 | |||||
| 35 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 36 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 84.99 | |||||
| 37 | W11518235 | Lamp, Led (Replaces: W10574850) |
|
Immediately | $ 26.36 | ||||
| 38 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 30.70 | ||||
| 39 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 81.72 | ||||
| 40 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 |
