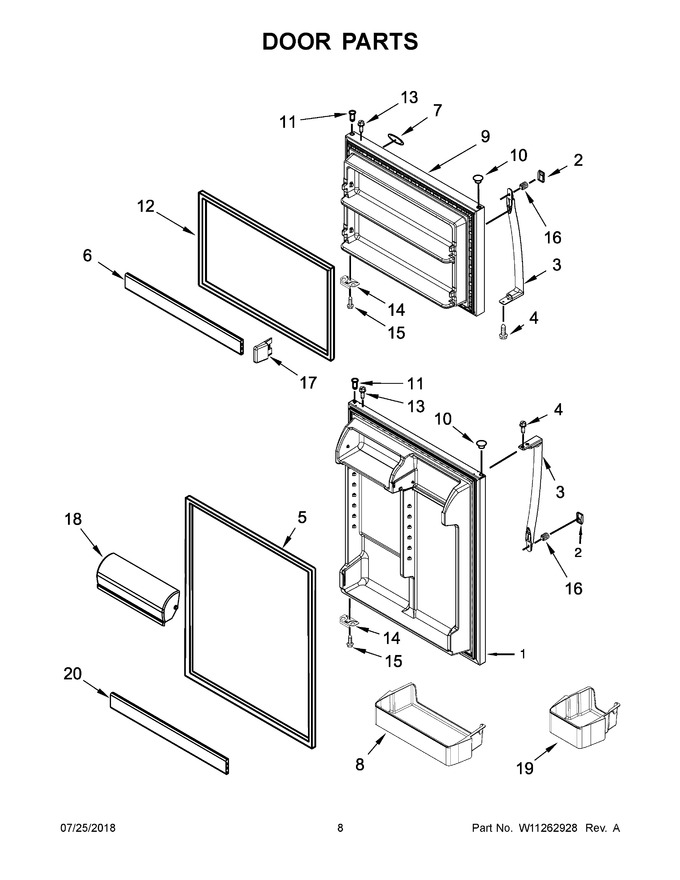

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10856289		Refrigerator Door (includes Illustration 5) (stainless)   (Replaces: W10856289)				$ 685.76
2	W10917259		Handle, Trim (grey)   (Replaces: W10864207)				$ 50.68
3	W10837029		Handle, Door (stainless)   (Replaces: W10653471)			Immediately	$ 169.81
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
5	W10249195		Door Gasket, Magnetic (grey)   (Replaces: W10171475)				$ 287.83
6	W10592150		Trim, Door				$ 107.96
7	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 56.82
8	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 76.37
9	LW10856291		Freezer Door (includes Illustration 12) (stainless)   (Replaces: W10856291)				$ 653.72
10	W10830982		Hole Plug (grey)   (Replaces: W10663739)			Immediately	$ 16.75
11	W11189115		Thimble (black)   (Replaces: W10334042)				$ 10.89
12	W10249196		Door Gasket, Magnetic (grey)   (Replaces: W10171479)			Immediately	$ 239.23
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
16	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 13.81
17	W10838039		Cap, Trim End   (Replaces: W10592153)			Immediately	$ 47.73
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 29.43
19	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 64.96
20	W11126062		Trim, Door   (Replaces: W10592148)				$ 109.15

    View Diagram in Separate Window       Print Part List
