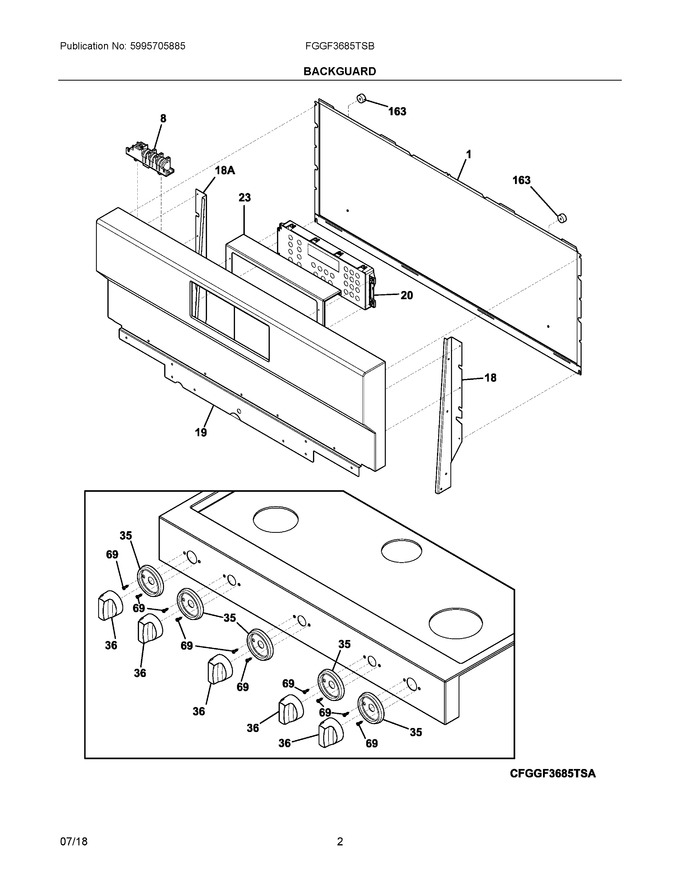

02 - Backguard


03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509379		Panel, Rear Wire, Upper		Appelez-nous	-
8	808608804		Spark Module			Immediately	$ 76.06
18	808312001		Bracket, Support, Rh		Appelez-nous	-
19	807175303		Panel, Backguard, Stainless		Appelez-nous	-
20	139058400		Control Assembly, Electronic, Es536w1, Black, W/touch Pad		Appelez-nous	-
23	807328502		Bracket, Control Mtg.		Appelez-nous	-
35	808312203		Skirt, Knob, Stainless		Appelez-nous	-
36	808868202		Knob, Top Valve, Stainless		Appelez-nous	-
69	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
163	318531700		Spacer, (2)		Appelez-nous	-
18A	808312002		Bracket, Support, Lh		Appelez-nous	-
NI	5304411569		Tape, 3/4" Wide, Foam, Gray		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23
NIC	5304509416		Harness, Ignition, Spark Module, To Ignitors		Appelez-nous	-
