SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

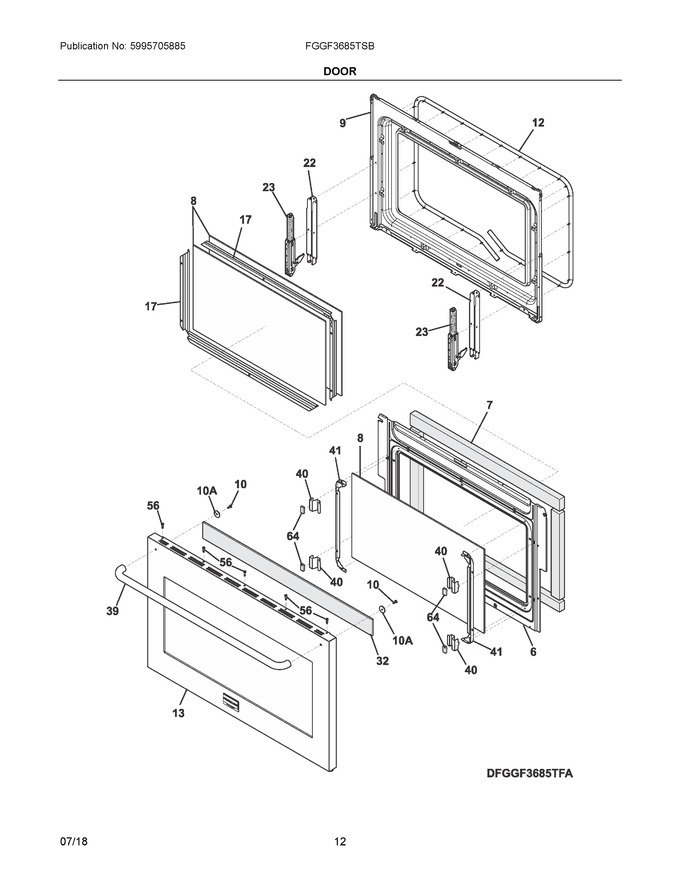

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260552		Baffle, Door		Appelez-nous	-
7	807354901		Insulation Assy., Door		Appelez-nous	-
8	318212250		Glass, Oven Door, Heat Barrier, (2)				$ 261.63
9	318364604		Liner, Oven Door		Appelez-nous	-
10	5304437044		Screw, 10-32 X 1/4, Black, (4)				$ 9.93
12	5304504355		Seal, Oven Door				$ 117.34
13	139083301		Door Assembly, Outer, Stainless/black, W/glass & Badge		Appelez-nous	-
17	318376403		Spacer, Door Glass, (2)		Appelez-nous	-
22	318353803		Retainer, Hinge				$ 52.45
23	318244304		Hinge Assy, (2)				$ 285.90
32	5304508568		Insulation, Door Skin		Appelez-nous	-
39	318039813		Handle, Door, Stainless		Appelez-nous	-
40	318364701		Bracket, Glass, (4)		Appelez-nous	-
41	5304508554		Bracket, Glass Retainer		Appelez-nous	-
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
10A	5304498487		Washer, Handle Screw		Appelez-nous	-
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	316483102		Label, Anti-tip				$ 3.56
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22

    View Diagram in Separate Window       Print Part List
