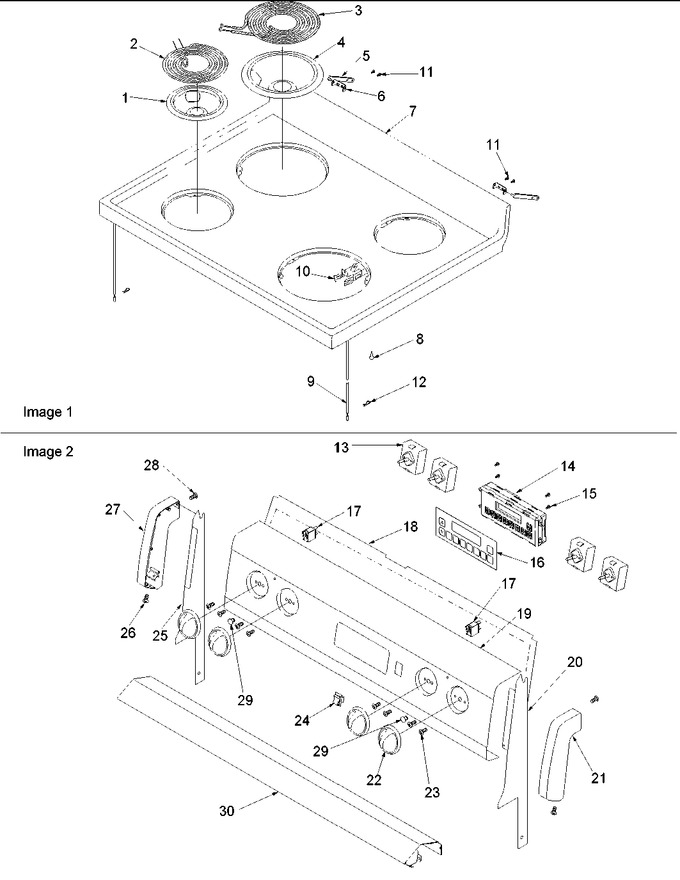

01 - Cabinet
02 - Cavity
03 - Main Top And Backguard
04 - Oven Door And Storage Drawer
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10290353RW | Burner, Bowl 6`` (black) (Replaces: 308648B) |
|
Immediately | $ 19.27 | ||||
| 2 | WPW10259868 | Element, 4 Turn (1500w) 6`` (Replaces: 31734602) |
|
Immediately | $ 112.28 | ||||
| 3 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: 31734606) |
|
Immediately | $ 105.92 | ||||
| 4 | WPW10290350 | Bowl, Burner 8`` (black) (Replaces: 308649B) |
|
Immediately | $ 15.25 | ||||
| 5 | Y0315931 | Pin, Hinge |
|
- | |||||
| 6 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 7 | 306899C | Top, Main (bisque) |
|
- | |||||
| 8 | 31717001 | Spacer, Snap-in |
|
- | |||||
| 9 | Y0315430 | Support, Maintop |
|
- | |||||
| 10 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| 11 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410) |
|
Immediately | $ 12.65 | ||||
| 12 | 0091607 | Sub 71668 Pin |
|
- | |||||
| 13 | 31926701 | Switch, Infinite Csi (y) |
|
- | |||||
| 13 | 31926703 | Switch, Infinite Csi (r) |
|
- | |||||
| 14 | Y0315570 | Erc3 (electric) |
|
- | |||||
| 15 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 16 | 315851C | Overlay,mylar-erc 3(bisque) |
|
- | |||||
| 17 | 31722801 | Light, Indicator (125v) |
|
- | |||||
| 18 | 0315887 | Cover, Upper Rear |
|
- | |||||
| 19 | 31920503CC | Pnl, Bkgd Arr6420 |
|
- | |||||
| 20 | 315876C | Bkgd Support,rh(bisque) |
|
- | |||||
| 21 | 315841C | End Cap, Rh(bisque) |
|
- | |||||
| 22 | 31932304C | Knob, Infinite Switch (bsq) |
|
- | |||||
| 23 | 31750714 | Screw, No.8-32 X 1/4 |
|
- | |||||
| 24 | 301491C | Switch,rocker(bisque) |
|
- | |||||
| 25 | 315877C | Bkgd Support,lh(bisque) |
|
- | |||||
| 26 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 27 | 315843C | End Cap, Lh(bisque) |
|
- | |||||
| 28 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 29 | Y0316265 | Lens, Indicator |
|
- | |||||
| 30 | 31722704B | Shield, Bkgd Trim Heat |
|
- | |||||
| NI | 31750420 | Screw, No.8-32 X3/8 P Trs Hd Lp |
|
- | |||||
| NI | 31750407 | Screw, No.8-18 X 3/8 Pph (blk) |
|
- | |||||
| NI | Y0315867 | Harness, Bkgd Erc |
|
- | |||||
| NI | 31918101 | Harness, Coil Elem L.h. |
|
- | |||||
| NI | 31918201 | Harness, Coil Elem R.h. |
|
- |
