01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer

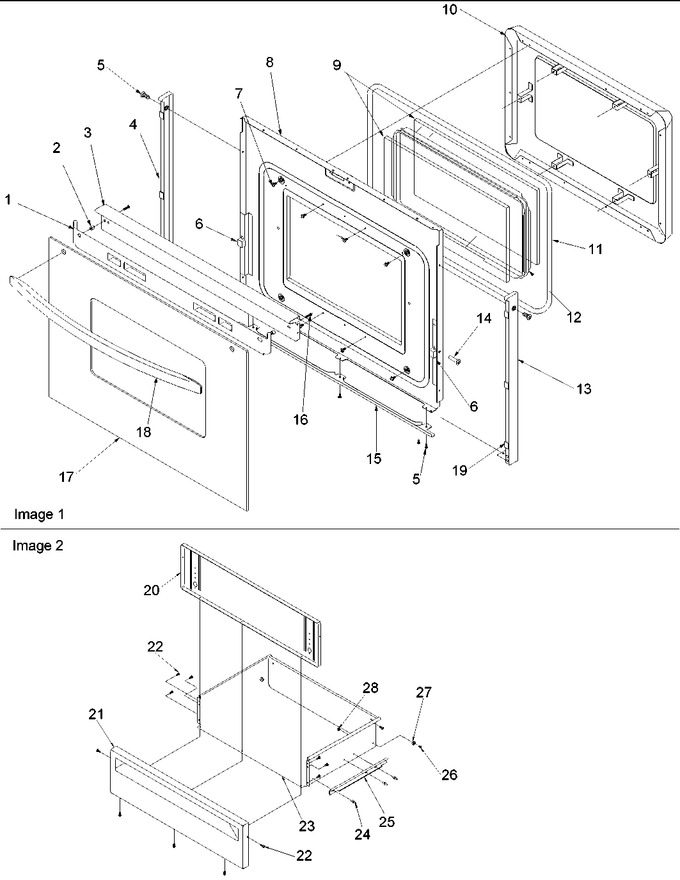

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31854101		Assy, Glass Heat Shield		Appelez-nous	-
2	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
3	31782105C		Trim,door Top(bisque)		Appelez-nous	-
4	309458C		End Cap, Lt (bsq)		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
6	Y0309627		Bumper, Rubber		Appelez-nous	-
7	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
8	317028CG		Backer, Oven Door (elec)		Appelez-nous	-
9	Y0317019		Glass, Door		Appelez-nous	-
10	317021CG		Pad, Oven Door		Appelez-nous	-
11	31715902		Gasket, Oven Door (67``)				$ 13.97
12	Y0317020		Frame, Window Pack		Appelez-nous	-
13	309457C		End Cap, Rt (bsq)		Appelez-nous	-
14	Y0302648		Rivet, Pop		Appelez-nous	-
15	309460C		Support, Glass (bsq)		Appelez-nous	-
16	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
17	315944C		Glass,door(bisque)		Appelez-nous	-
18	31689505C		Handle, Oven Door (bsq)		Appelez-nous	-
19	0043184		Tape, Foam		Appelez-nous	-
20	31930601B		Liner, Drawer Panel (blk)		Appelez-nous	-
21	309177C		Panel, Drawer (chr)		Appelez-nous	-
22	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
23	31967403W		Wrapper, Storage Door (wht)		Appelez-nous	-
24	Y0097822		Rivet, Pop		Appelez-nous	-
25	31733301		Track, Storage Drawer		Appelez-nous	-
26	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
27	31733401		Roller, Drawer				$ 5.75
28	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	31975501		Insulation, Door Pad-long		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
