SELECT A DIAGRAM

01 - Cover Sheet

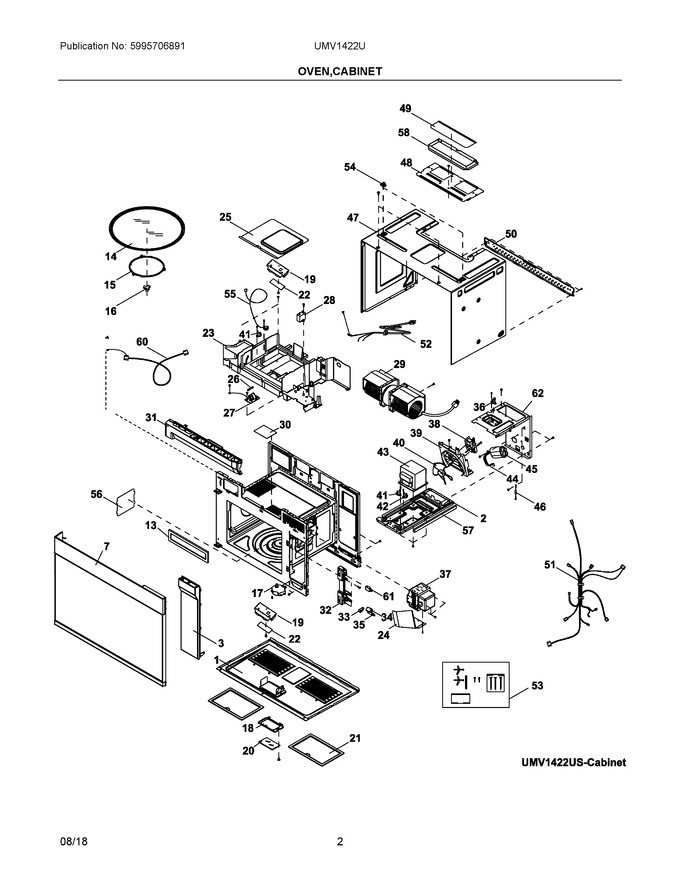

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304517865		Base Plate				$ 129.00
2	5304513460		Plate, Hv Transformer, Mounting		Appelez-nous	-
3	5304518786		Control Assembly, Complete, W/pcb			Immediately	$ 246.31
7	5304518788		Door Assembly, Complete, White/black				$ 348.45
13	FRPAMRAF		Filter, Charcoal, 2" X 10   (Replaces: 5304464577)			Immediately	$ 37.86
14	5304509621		Tray, Turntable				$ 154.61
15	5304517881		Ring, Rotating			Immediately	$ 36.72
16	5304505672		Shaft, Turntable/motor, Coupler			Immediately	$ 21.59
17	5304513471		Motor, Turntable			Immediately	$ 92.20
17	5304509440		Motor, Turntable				$ 118.13
18	5304509441		Frame, Lens Holder		Appelez-nous	-
19	5304509442		Cover, Lamp				$ 59.09
20	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
21	5304517871		Filter, Grease			Immediately	$ 26.91
22	5304517872		Lamp, Led			Immediately	$ 44.24
23	5304517873		Wave Guide, Main		Appelez-nous	-
24	5304513477		Guide, Air, Magnetron				$ 21.55
25	5304513485		Cover, Cavity Lamp		Appelez-nous	-
26	5304509451		Fuse			Immediately	$ 13.01
26	5304517874		Fuse, Noise Filter			Immediately	$ 12.75
27	5304509452		Filter, Noise, Electronic			Immediately	$ 75.74
28	5304509453		Capacitor, Start				$ 141.75
29	5304509624		Motor, Vent				$ 425.32
30	5304517875		Tape, Lamp		Appelez-nous	-
31	5304517876		Gille, Vent, Black		Appelez-nous	-
32	5304509457		Latch Hook			Immediately	$ 43.79
33	5304509458		Lever, Switch			Immediately	$ 10.17
34	5304512529		Switch, Monitor			Immediately	$ 37.96
35	5304515182		Switch, Interlock			Immediately	$ 34.84
35	5304509460		Switch, Interlock			Immediately	$ 45.27
36	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
36	5304509469		Thermostat, 160/95 *v			Immediately	$ 21.78
37	5304509470		Magnetron, High Voltage			Immediately	$ 436.17
38	5304513476		Motor, Fan				$ 190.32
39	5304513475		Guide, Fan		Appelez-nous	-
40	5304517877		Blade, Fan				$ 5.96
41	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
41	5304509474		Thermostat, Cutout, Transformer			Immediately	$ 20.97
42	5304509475		Thermostat, Cutout, Vent Motor			Immediately	$ 19.52
42	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
43	5304509476		Transformer, High Voltage				$ 440.36
43	5304515184		Transformer, Power, Hv			Immediately	$ 423.01
44	5304513482		Holder, Hv Capacitor		Appelez-nous	-
45	5304509478		Capacitor, High Voltage			Immediately	$ 153.84
46	5304509479		Diode, High Voltage				$ 28.30
46	5304515185		Diode, High Voltage			Immediately	$ 25.83
47	5304517878		Wrapper, Outer Case, Black				$ 142.47
48	5304517879		Cover, Vent Motor				$ 59.26
49	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
50	5304517880		Plate, Mounting Brackt				$ 40.78
51	5304518791		Harness, Wiring, Main				$ 77.97
52	5304512501		Power Cord, Electric				$ 106.27
53	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38
54	5304509436		Mounting Nut Kit			Immediately	$ 14.71
55	5304509652		Sensor, Humidity				$ 305.46
56	5304509435		Cover, Waveguide				$ 13.74
57	5304509482		Cushion, Foam Pad, Transformer		Appelez-nous	-
58	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
60	5304504073		Wire, Connector, Pc Board				$ 130.98
61	5304509460		Switch, Interlock			Immediately	$ 45.27
62	5304513479		Duct, Air Guide, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
