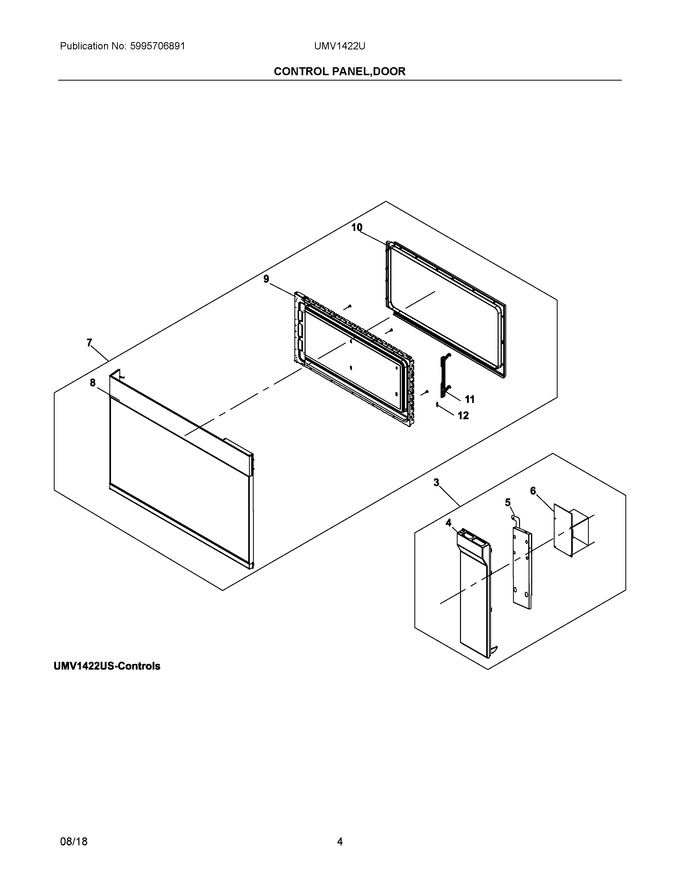

03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304518786 | Control Assembly, Complete, W/pcb |
|
Immediately | $ 246.31 | ||||
| 4 | 5304517866 | Control Cover, Assembly |
|
- | |||||
| 5 | 5304517867 | Shield, Control |
|
- | |||||
| 6 | 5304517868 | Pc Board, Control |
|
Immediately | $ 317.37 | ||||
| 7 | 5304518788 | Door Assembly, Complete, White/black |
|
$ 348.45 | |||||
| 8 | 5304518790 | Door Assembly, Outer, White/black |
|
- | |||||
| 9 | 5304517869 | Door Frame, Inner |
|
- | |||||
| 10 | 5304517870 | Gasket, Door |
|
$ 18.43 | |||||
| 11 | 5304525298 | Latch, Door (Replaces: 5304509432) |
|
Immediately | $ 10.85 | ||||
| 12 | 5304521953 | Spring, Door Latch (Replaces: 5304509433) |
|
$ 7.23 |
