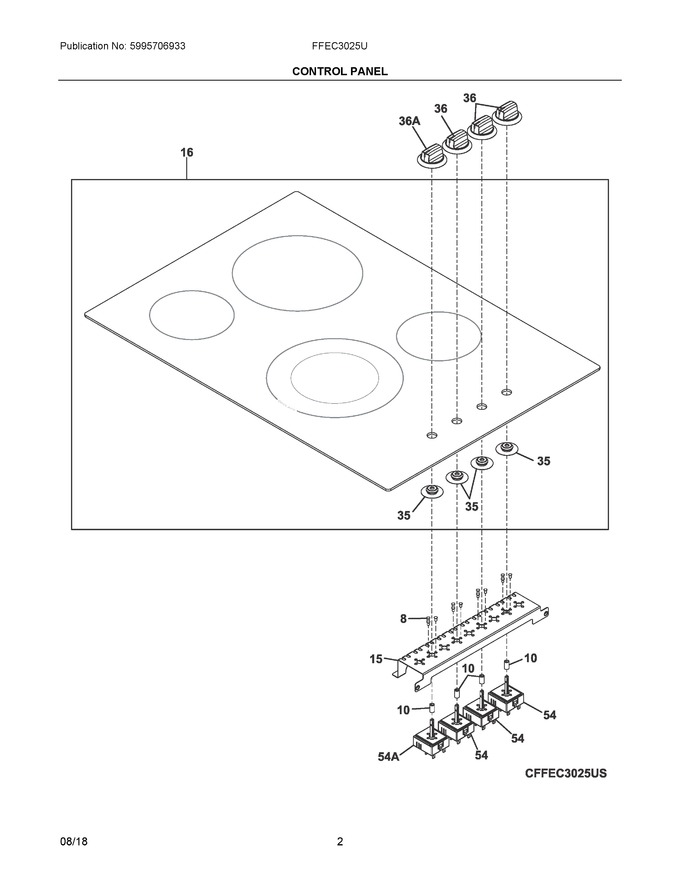

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 10 | 5304515131 | Spacer, Silicone Seal, Switch Shaft |
|
Immediately | $ 160.02 | ||||
| 15 | 5304518623 | Control Box, Switch Mtg |
|
- | |||||
| 16 | 5304518625 | Maintop, Assembly, Black/stainless, W/4 Bushings (Replaces: 5304518626) |
|
$ 520.73 | |||||
| 35 | 5304515130 | Bushing, Knob, Sealing |
|
Immediately | $ 91.15 | ||||
| 36 | 5304518268 | Knob, Control, Black, Single Element |
|
Immediately | $ 24.07 | ||||
| 54 | 5304526190 | Switch, Infinite, Single Control (Replaces: 305458905) |
|
Immediately | $ 90.50 | ||||
| 36A | 5304518269 | Knob, Control, Black, Dual Element |
|
Immediately | $ 20.74 | ||||
| 54A | 903097-9040 | Switch, Infinite, Dual Control (Replaces: 318191001) |
|
Immediately | $ 90.83 | ||||
| NI | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
