SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

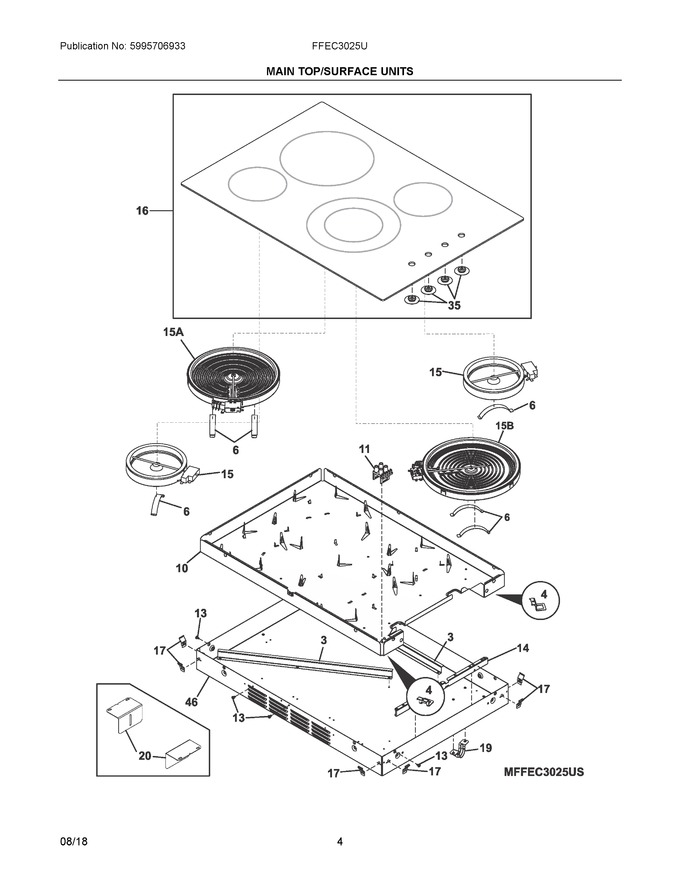

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	387683500		Support, Burner Box		Appelez-nous	-
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
6	387372900		Spring, Surface Element				$ 15.17
10	5304518622		Box, Support, Inner, Element		Appelez-nous	-
12	387812006		Light Assembly, Indicator			Immediately	$ 44.79
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
14	5304518260		Support, Beam		Appelez-nous	-
15	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
16	5304518625		Maintop, Assembly, Black/stainless, W/4 Bushings   (Replaces: 5304518626)				$ 520.73
17	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
19	318389600		Bracket, Conduit Mtg.				$ 12.76
20	5304514345		Bracket, Retainer, (2)		Appelez-nous	-
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 91.15
46	5304518262		Box, Cooktop, Outer				$ 85.05
15A	305440417		Element, Surface, 9", 2500w			Immediately	$ 302.79
15B	8583890874024		Element, Surface, 6/9", Dual, 1600/3000w   (Replaces: 389087401)		Appelez-nous	-
NI	5304518624		Harness, Wiring, Main			Immediately	$ 118.82
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	305351200		Rivet, 3, 2 X 6		Appelez-nous	-
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NI	131202300		Screw, (4)   (Replaces: 305376102)			Immediately	$ 13.46
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	305309606		Screw, (2)				$ 11.34
NI	5304537041		Box & Wires Assy   (Replaces: 5304518621)			Immediately	$ 99.72

    View Diagram in Separate Window       Print Part List
