01 - Cover Sheet

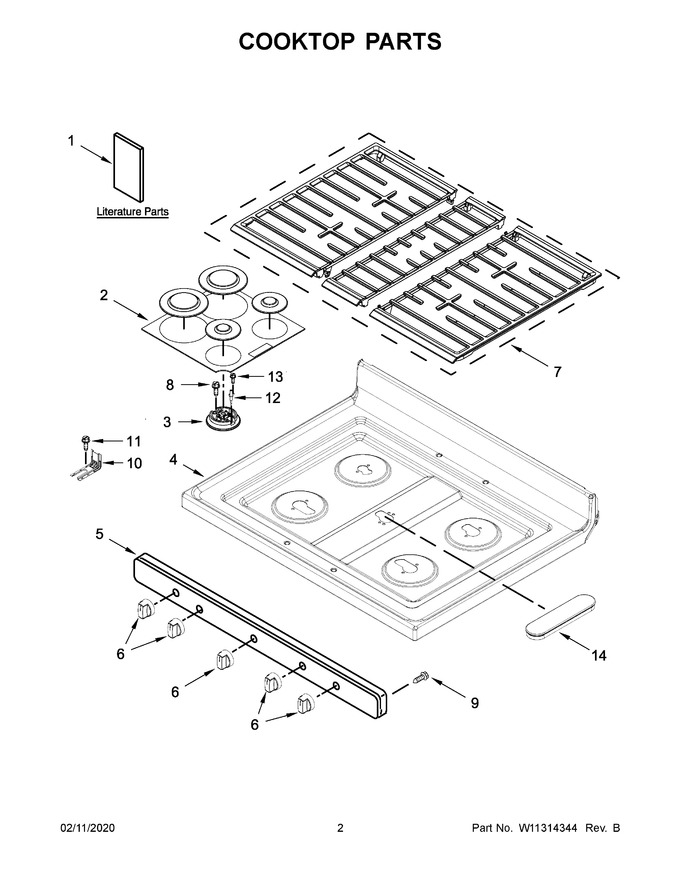

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11177375 | Installation Instructions |
|
- | |||||
| 2 | W10881749 | Kit, Burner Cap (black (set Of 4)) (Replaces: W10850506) |
|
$ 95.73 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 101.22 | |||||
| 4 | W10884167 | Cooktop (black) |
|
- | |||||
| 5 | W11165140 | Panel, Manifold (stainless) (Replaces: W11044911) |
|
$ 310.07 | |||||
| 6 | W11159630 | Knob, Control (stainless) (Replaces: W11023139) |
|
Immediately | $ 60.35 | ||||
| 7 | W11252165 | Kit, Grate (black) (Replaces: W11090908) |
|
$ 355.20 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 6.42 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 10 | W11447673 | Anti-tip Bracket (Replaces: W11379945) |
|
Immediately | $ 28.64 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 12 | WPW10515459 | Electrode (left Front, Left Rear, Right Front) (Replaces: W11194809) |
|
Immediately | $ 37.52 | ||||
| 13 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 12.63 | ||||
| 14 | W11162114 | Spreader, Flame (Replaces: W10298664) |
|
$ 77.06 | |||||
| 12A | WPW10515459 | Electrode (right Rear) (Replaces: W10515459) |
|
Immediately | $ 37.52 | ||||
| 12B | W11447374 | Electrode (center) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 1A | W11121658 | Guide, Use And Care |
|
- | |||||
| 1B | W11102748 | Sheet, Tech (english) |
|
- | |||||
| 1C | W11032799 | Diagram, Wiring |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454) |
|
$ 99.21 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 85.10 | |||||
| 5A | W11165142 | Panel, Manifold (black Stainless) (Replaces: W11044910) |
|
$ 311.09 | |||||
| 6A | W11239985 | Knob, Control (black Stainless) (Replaces: W11032553) |
|
Immediately | $ 69.54 | ||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10849001 | Harness, Main |
|
$ 161.78 | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 185.62 | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 137.92 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 |
