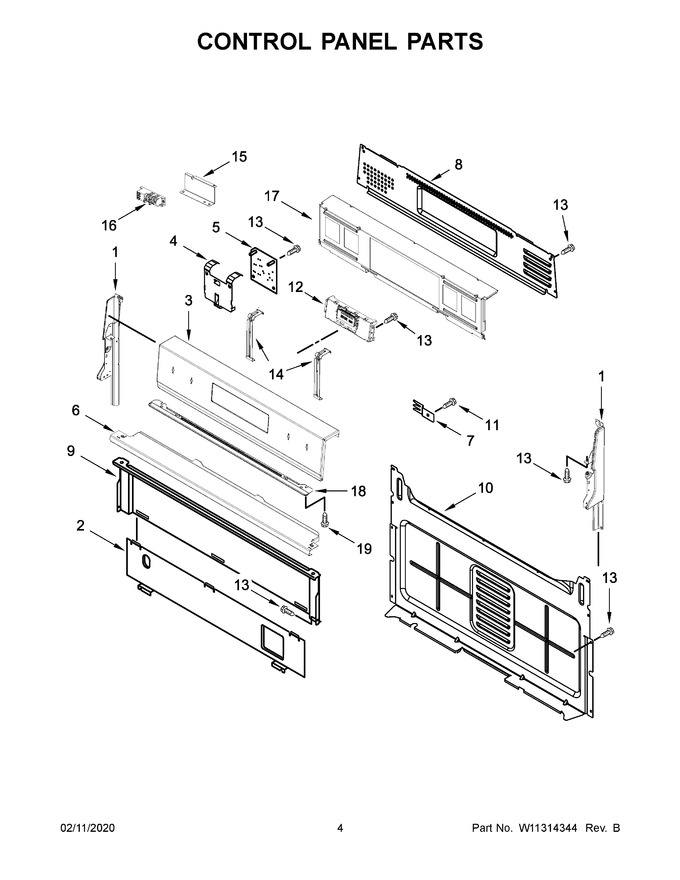

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 298.09
2	8053505		Shield, Heat				$ 142.19
3	W11175171		Panel, Control (stainless)   (Replaces: W10869988)			Immediately	$ 288.79
4	W10762981		Bracket, Mounting				$ 65.50
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 196.59
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 143.91
8	W10198745		Cover, Upper				$ 110.48
9	W10192841		Shield, Heat				$ 91.45
10	W10184251		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
12	W11258611		Control, Electronic (lcx) (black)   (Replaces: W11204531)				$ 439.68
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
14	W10856361		Bracket, Control		Appelez-nous	-
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
17	W10901802		Panel, Backer				$ 80.93
18	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 190.66
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
1A	W11213292		Endcap (black (right))				$ 61.42
3A	W11175173		Panel, Control (black Stainless)   (Replaces: W10881624)				$ 288.82
