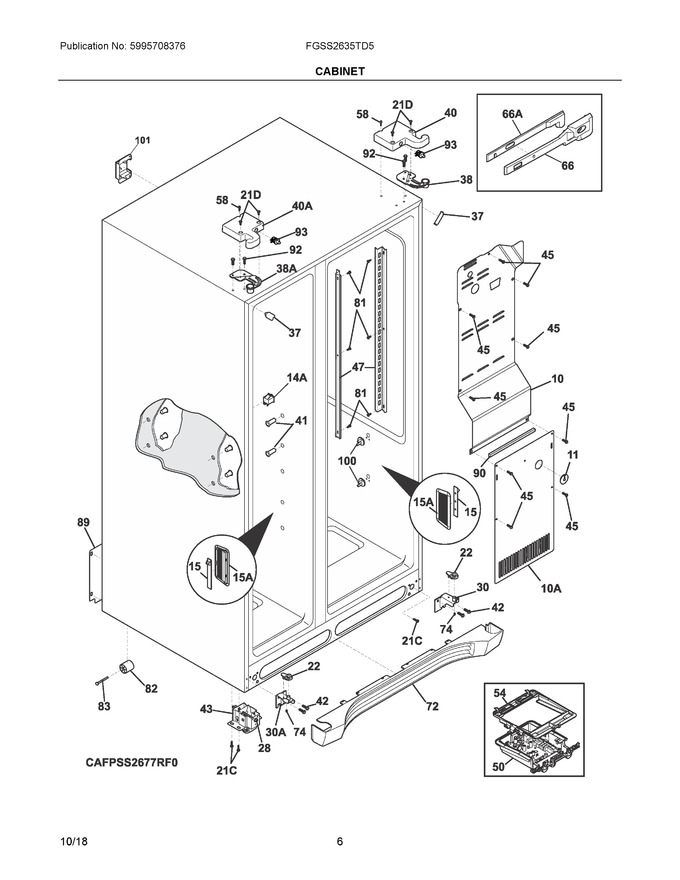

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 808165002 | Cover-air Duct |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 15 | 5304525264 | Light Board, 3 Led Cluster, 6500k (Replaces: 242196211) |
|
Immediately | $ 53.64 | ||||
| 22 | 241917801 | Plate-door Closer |
|
$ 7.09 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 31.33 | ||||
| 30 | 241918001 | Bracket-lower Hinge, W/hinge Pin, Rh, And Screw |
|
$ 65.92 | |||||
| 37 | 5304519617 | Trim-corner, Cabinet (black) |
|
- | |||||
| 38 | 241761301 | Bracket-upper Hinge, Rh |
|
$ 66.25 | |||||
| 40 | 241946705 | Cover-upper Hinge, Black, Rh |
|
$ 43.24 | |||||
| 41 | 241550801 | Grommet-shelf Mtg, 1.40" Long |
|
$ 63.70 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Front, (2) (Replaces: 240335006) |
|
Immediately | $ 31.33 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 47 | 241513003 | Channel-shelf Mtg, Side, (2) |
|
- | |||||
| 50 | 5304512769 | Board-main Power |
|
$ 292.73 | |||||
| 54 | 807854301 | Support, Housing, Main Board |
|
$ 45.36 | |||||
| 58 | 241548003 | Screw, 10-32 X 3/8 |
|
$ 3.03 | |||||
| 66 | 241756801 | Damper-meat Keeper |
|
$ 28.05 | |||||
| 72 | 241969403 | Grille/kickplate, Black |
|
$ 83.42 | |||||
| 74 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 89 | 5304520905 | Cover-access, W/label (Replaces: 241733902) |
|
Immediately | $ 74.03 | ||||
| 90 | 218249808 | Seal-coil Cover |
|
- | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 93 | 241911709 | Switch, Plunger Style (Replaces: 241911704) |
|
$ 21.99 | |||||
| 100 | 241993101 | Support-crisper Cvr |
|
Immediately | $ 5.62 | ||||
| 101 | 242157801 | Cover, Tubing, Eps Block |
|
$ 23.13 | |||||
| 10A | 808217503 | Cover-evap Coil, Lower (Replaces: 808217502) |
|
$ 27.75 | |||||
| 14A | 241547902 | Switch-light/lamp, Frzr Door (Replaces: 241547901) |
|
Immediately | $ 23.25 | ||||
| 15A | 242202701 | Lens, 3 Led Cluster |
|
$ 30.47 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 21D | 218781101 | Screw, Pan Head, 8-18 X 0.625 |
|
$ 15.60 | |||||
| 30A | 241918004 | Bracket-lower Hinge, W/hinge Pin, Lh, And Screw |
|
$ 52.45 | |||||
| 38A | 241761302 | Bracket-upper Hinge, Lh |
|
$ 64.49 | |||||
| 40A | 241946706 | Cover-upper Hinge, Black, Lh |
|
$ 43.24 | |||||
| 66A | 241756901 | Housing-damper |
|
$ 32.62 | |||||
| NI | 241868101 | Air Guide |
|
- | |||||
| NI | 241890601 | Louver, Air Supply, Crisper |
|
$ 15.60 | |||||
| NIA | 241512807 | Seal |
|
$ 2.84 | |||||
| NIA | 241550701 | Grommet-shelf Mtg, .96" Long |
|
$ 18.20 | |||||
| NIA | 808835601 | Harness, Jumper, Light Switch |
|
$ 20.98 | |||||
| NIA | 241993001 | Support-crisper Cvr |
|
Immediately | $ 19.23 | ||||
| NIB | 241781601 | Seal-return Air |
|
$ 9.10 |
