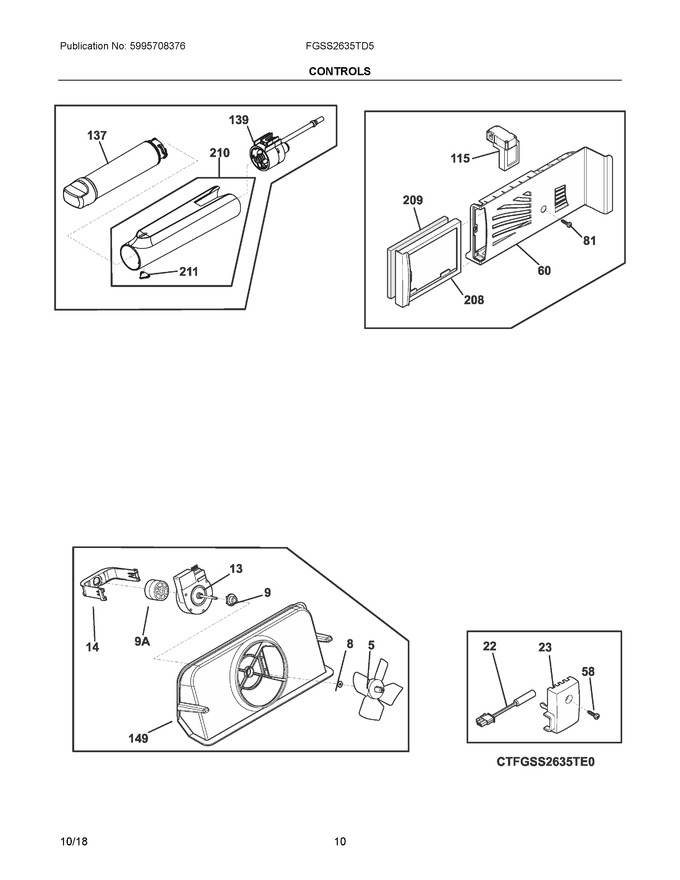

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 13 | 242290001 | Motor-blower |
|
$ 156.47 | |||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241512901 | Cover-sensor |
|
$ 83.49 | |||||
| 58 | 241548003 | Screw, 10-32 X 3/8 |
|
$ 3.03 | |||||
| 60 | 242287001 | Housing, Diffuser, & Air Filter |
|
$ 43.95 | |||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 241853801 | Damper Assy, W/seal |
|
$ 157.35 | |||||
| 137 | 807946701 | Filter Assembly, Puresource U-ii, W/cap |
|
- | |||||
| 139 | 5304522623 | Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve (Replaces: 807931801) |
|
Immediately | $ 64.53 | ||||
| 149 | 241563501 | Shroud-fan Orfice |
|
- | |||||
| 208 | 241754301 | Sleeve, Air Filter, Front |
|
$ 38.28 | |||||
| 209 | EAFCBF | Filter, Air (Replaces: 242047804) |
|
Immediately | $ 27.64 | ||||
| 210 | 807747304 | Housing, Water Filter, W/drip Pad |
|
$ 35.42 | |||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 22.68 | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NIA | 241945101 | Insulation-air Duct |
|
$ 19.85 | |||||
| NIA | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| NIA | 241528306 | Seal, Shroud |
|
- |
