View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

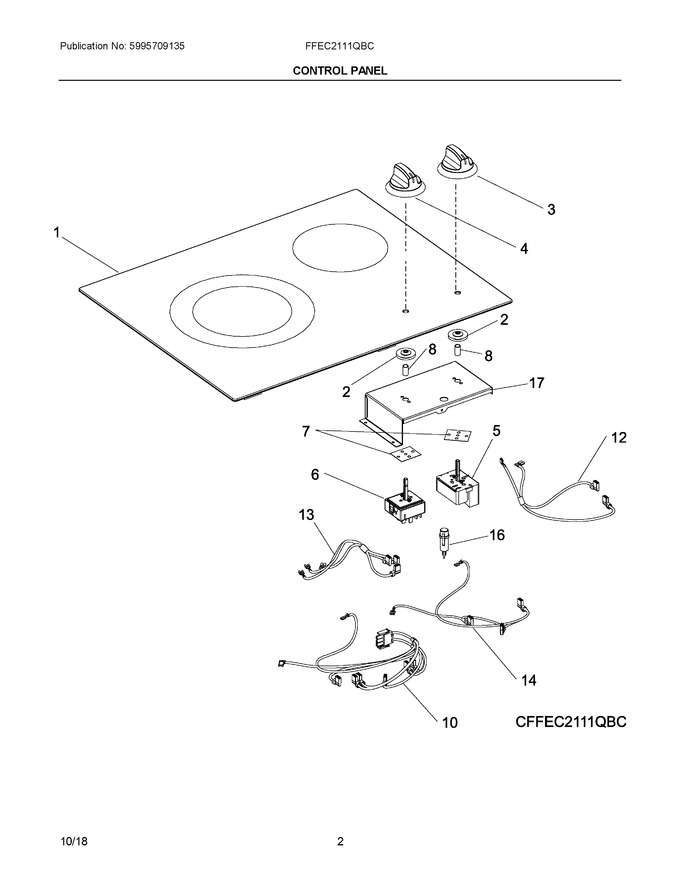

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304499899 | Main Top, Assembly, Black, W/brackets |
|
- | |||||
| 2 | 5304499900 | Grommet, Glass Seal, (2 Pack) |
|
- | |||||
| 3 | 5304499901 | Knob, Control, Single Burner |
|
- | |||||
| 4 | 5304499902 | Knob, Control, Dual Burner |
|
- | |||||
| 5 | 318293824 | Switch, Infinite, Single Element |
|
Immediately | $ 97.07 | ||||
| 6 | 318191000 | Switch, Infinite, Dual Element |
|
Immediately | $ 102.48 | ||||
| 7 | 5304499903 | Seal, Switch, (2 Pack) |
|
- | |||||
| 8 | 5304519985 | Sleeve, Stem |
|
- | |||||
| 10 | 5304519984 | Harness, Wiring, Main |
|
- | |||||
| 12 | 5304499905 | Harness, Wiring, Single Burner |
|
- | |||||
| 13 | 5304499906 | Harness, Wiring, Dual Burner |
|
- | |||||
| 14 | 5304499907 | Harness, Wiring, Light |
|
- | |||||
| 16 | 5304485476 | Light, Indicator |
|
- | |||||
| 17 | 5304499908 | Box, Control Mtg. |
|
- |
