View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel

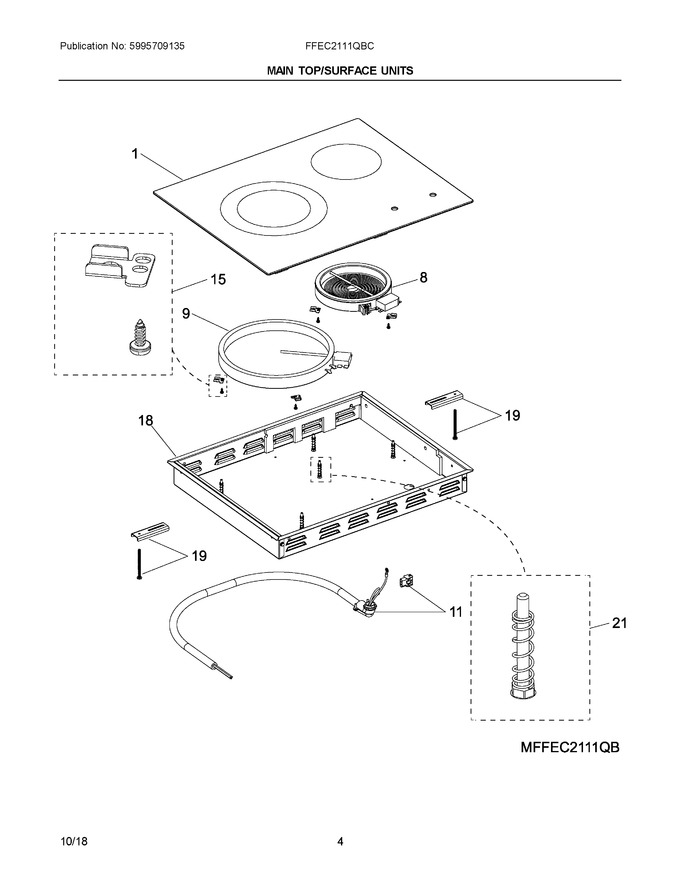

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304499899 | Main Top, Assembly, Black, W/brackets |
|
- | |||||
| 8 | 5304499909 | Burner, Single |
|
- | |||||
| 9 | 5304499910 | Burner, Dual |
|
- | |||||
| 11 | 5304499911 | Harness, Power Inlet, W/conduit |
|
- | |||||
| 15 | 5304499912 | Bracket, Burner Mtg., (5 Pack), W/screws |
|
- | |||||
| 16 | 318191000 | Switch, Infinite, Dual Element |
|
Immediately | $ 102.48 | ||||
| 18 | 5304499913 | Box, Burner Chassis |
|
- | |||||
| 19 | 5304499914 | Hardware Pack, Cooktop Mtg., W/brackets |
|
- | |||||
| 21 | 5304499915 | Stud, Burner, (5 Pack), W/spring |
|
- | |||||
| NI | 5304499916 | Hardware Bag, General |
|
- |
