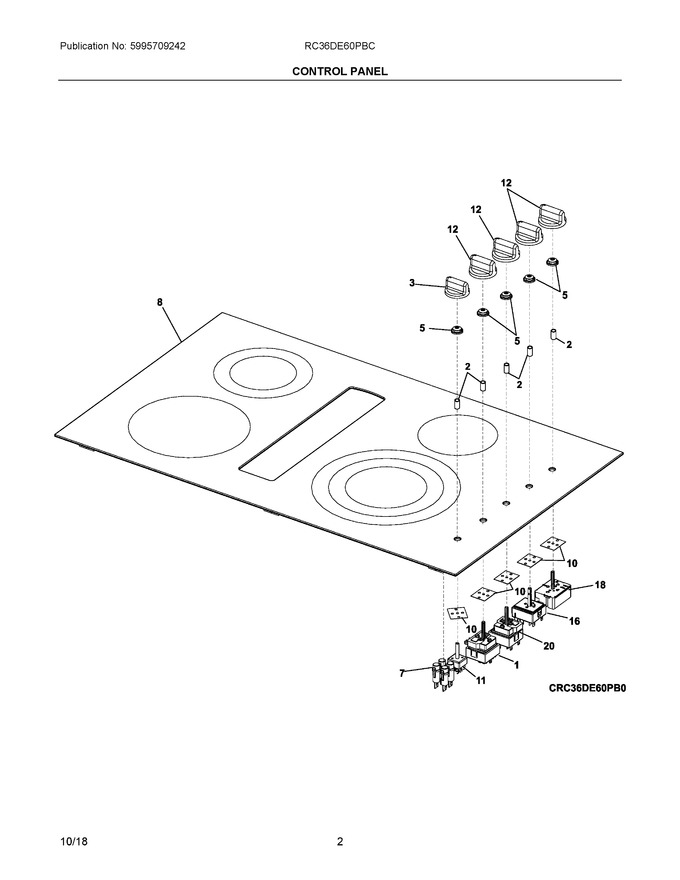

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304519993 | Switch, Infinite, Triple Element |
|
- | |||||
| 2 | 5304519985 | Sleeve, Stem |
|
- | |||||
| 3 | 316564422 | Knob, Control, Black, Blower |
|
- | |||||
| 5 | 5304485474 | Seal, Stem, Blower Control |
|
- | |||||
| 7 | 5304485476 | Light, Indicator |
|
- | |||||
| 8 | 5304517117 | Main Top Assembly, Glass, Black |
|
- | |||||
| 10 | 5304485480 | Seal, Burner Switch, (5) |
|
- | |||||
| 11 | 5304485481 | Switch, Blower, 3 Speed, Rotary |
|
$ 178.45 | |||||
| 12 | 316564421 | Knob, Control, Black, (3) |
|
- | |||||
| 16 | 318191000 | Switch, Infinite, Dual Element |
|
Immediately | $ 102.48 | ||||
| 18 | 318293824 | Switch, Infinite, Single Element |
|
Immediately | $ 97.07 | ||||
| 20 | 318531500 | Switch, Infinite, Turbo Element |
|
Immediately | $ 110.14 |
