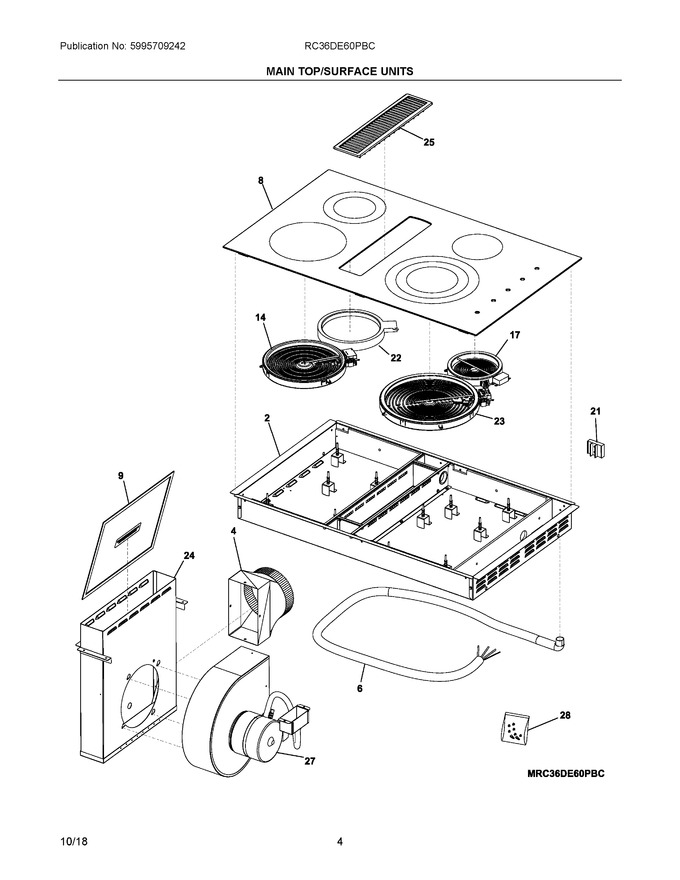

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304485490 | Box, Burner, 36 |
|
- | |||||
| 4 | 5304485473 | Transition, Exhaust |
|
- | |||||
| 6 | 5304485475 | Conduit Assembly, Power Supply |
|
- | |||||
| 8 | 5304517117 | Main Top Assembly, Glass, Black |
|
- | |||||
| 9 | 5304485479 | Filter, Blower Air |
|
- | |||||
| 14 | 8583165300010 | Element, Surface, 9", 3200w, Turbo Boil (Replaces: 316530000) |
|
Immediately | $ 76.06 | ||||
| 17 | 318178110 | Element, Surface, 6", 1200w, (2), Radiant (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| 21 | 5304485482 | Block, Terminal |
|
- | |||||
| 22 | 5304485483 | Element, Dual, 1800/800 Watt, Radiant |
|
$ 388.48 | |||||
| 23 | 318297810 | Element, Surface, Triple, 800/1900/3000, 6"/8"/11 (Replaces: 318297809) |
|
Immediately | $ 356.54 | ||||
| 24 | 5304485484 | Plenum Assembly, Blower |
|
- | |||||
| 25 | 5304491865 | Grate, Vent, W/packaging |
|
- | |||||
| 27 | 5304485487 | Blower Assembly |
|
$ 1,233.11 | |||||
| 28 | 5304491866 | Hardware Assembly, Cooktop Mtg. |
|
- | |||||
| NI | 5304519994 | Harness, Wiring, Main |
|
- |
