SELECT A DIAGRAM

01 - Cover Sheet

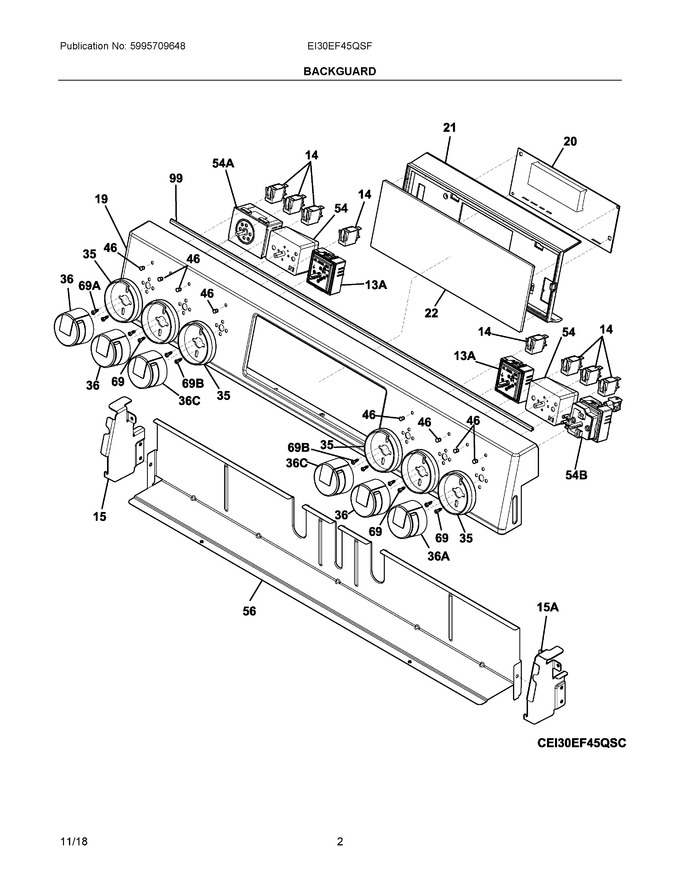

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022507		Light/lamp, Indicator, Orange				$ 22.75
15	809124402		Bracket, Support, Lh, Control Panel		Appelez-nous	-
19	809125103		Control Panel, Stainless				$ 519.37
20	316474913		Controller, Electronic				$ 336.47
21	809127301		Bracket Assembly, Plastic, Controller				$ 120.58
22	808770702		Control Panel, Touch, Glass, Black				$ 441.83
35	5304499690		Bezel, Knob		Appelez-nous	-
36	316535718		Knob, Control, Stainless, Single				$ 90.72
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	809124001		Deflector, Control, Front		Appelez-nous	-
69	5304480396		Screw, 8-32 X 3/8", (4)				$ 11.34
99	809125001		Gasket, Cooktop, Silicone, Black				$ 17.44
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 84.18
15A	809124401		Bracket, Support, Rh, Control Panel		Appelez-nous	-
36A	316535717		Knob, Control, Stainless, Triple				$ 87.89
36C	316535716		Knob, Control, Stainless, Warm Zone				$ 108.45
54A	316305100		Switch, Infinite, Turbo Flex			Immediately	$ 101.98
54B	807004702		Switch, Triple, Infinite			Immediately	$ 125.69
69A	5304491110		Screw, Trus Hd Nickl, 8-32 X 1/4		Appelez-nous	-
69B	5304401837		Screw, 8-32 X 5/16		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304517735		Harness, Wiring, Communication				$ 47.25
NI	5304517722		Harness, Wiring, Infinite Switch		Appelez-nous	-
NIA	807286001		Screw, 10-32 X 1/4				$ 12.02
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
