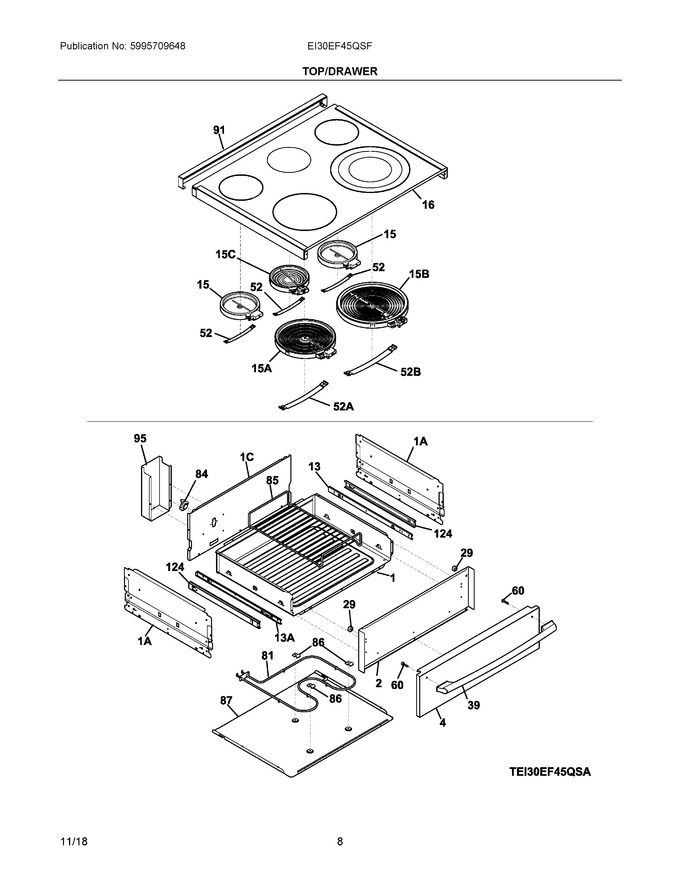

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304509910 | Drawer, Body Assembly |
|
- | |||||
| 2 | 318303907 | Panel, Drawer, Black, Inner |
|
$ 124.90 | |||||
| 4 | 318298828 | Panel, Drawer, Stainless, Front |
|
$ 194.25 | |||||
| 13 | 318259513 | Glide, Warmer, Inner Rh |
|
$ 29.58 | |||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304515542 | Smoothtop Assembly, Glass/steel, Black/stainless, W/insulation |
|
$ 647.29 | |||||
| 29 | 318147430 | Bumper, (2) |
|
$ 18.95 | |||||
| 39 | 316380802 | Handle, Door, Stainless |
|
$ 250.86 | |||||
| 52 | 318122006 | Spring, Element Mtg, Small |
|
$ 66.25 | |||||
| 60 | 5303311174 | Screw, 10-24 X 3/8 |
|
Immediately | $ 14.89 | ||||
| 81 | 318255301 | Element, Warmer Drawer |
|
$ 105.42 | |||||
| 84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel, Warmer Drawer, Lower |
|
$ 106.22 | |||||
| 91 | 809122901 | Trim, Cooktop, Stainless, Rear |
|
$ 97.82 | |||||
| 95 | 139008401 | Shield, Wire |
|
- | |||||
| 124 | 316105501 | Glide, Outer/rh & Lh, (2) |
|
$ 90.72 | |||||
| 13A | 318259512 | Glide, Warmer, Inner Lh |
|
$ 29.58 | |||||
| 15A | 316530001 | Element, Surface, 9", 3200w, Turbo Boil |
|
Immediately | $ 216.16 | ||||
| 15B | 318297810 | Element, Triple, 1200/2000/3000w, 6"/9"/12 |
|
Immediately | $ 356.54 | ||||
| 15C | 140273621015 | Element, Surface, Warmer, 100 W (Replaces: 316289800) |
|
Immediately | $ 35.77 | ||||
| 1A | 318300003 | Panel, Warmer Drawer, Side, (2) |
|
$ 56.13 | |||||
| 1C | 139022600 | Panel, Warmer Drawer, Rear |
|
- | |||||
| 52A | 318122010 | Spring, Element Mtg, 3000w |
|
$ 62.51 | |||||
| 52B | 318122011 | Spring, Element Mtg, 1200w/1800w |
|
$ 62.14 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 318163602 | Cleaner, Stainless Steel |
|
$ 26.51 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5304517727 | Harness, Wiring, Surface |
|
- | |||||
| NIA | 318591200 | Washer, Handle, Drawer |
|
- | |||||
| NIA | 5304497192 | Insualtion, Cooktop, Side, (2) |
|
$ 12.77 |
