SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter

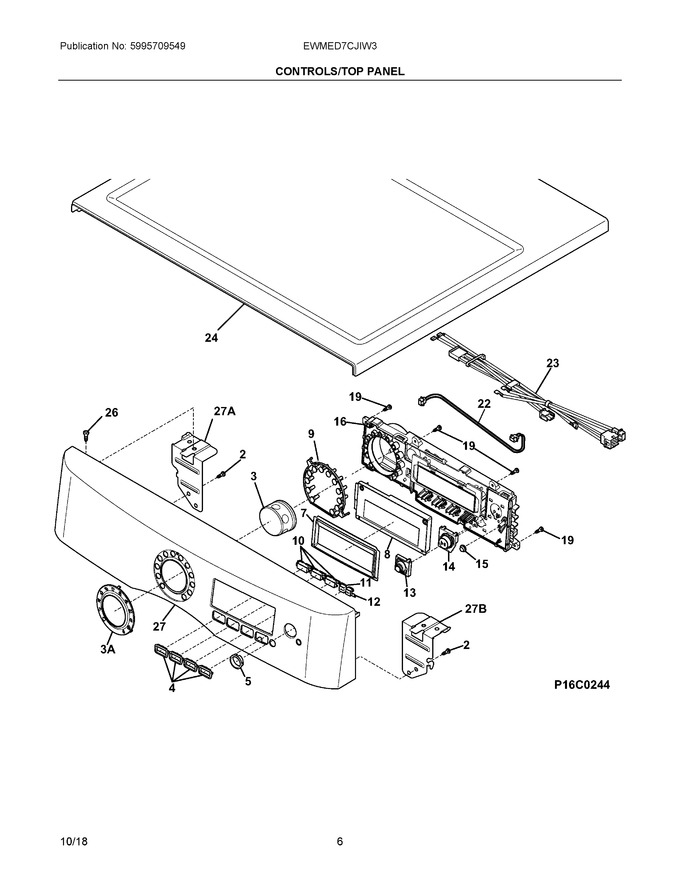

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
3	134766500		Knob, Retracting, Complete Asmy				$ 175.72
4	134871900		Pipe, Ring, Main Button				$ 84.34
5	134767800		Pipe, Start Button				$ 41.81
7	137007800		Trim, Ring, Lcd Display				$ 108.44
8	134767600		Lens, Lcd Display				$ 53.87
9	134768400		Pipe, Knob Light				$ 14.18
10	137007900		Cap, Main Button				$ 58.82
11	137043100		Button, Up				$ 36.86
12	137010900		Button, Down				$ 148.05
13	137021200		Button, Set				$ 59.85
14	137009900		Button, Start/pause				$ 74.03
15	137008100		Button, Off				$ 38.69
16	809160410		Pc Board, Control, User Interface, W/housing   (Replaces: 809160402)			Immediately	$ 448.67
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
22	134790700		Harness, User Interface				$ 88.36
23	137557100		Harness, Main Wire				$ 229.32
24	134638510		Panel, Work Top, White				$ 217.22
26	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
27	137317410		Panel, Control Console, White		Appelez-nous	-
27A	134710900		Bracket, Control Panel, Left Hand, Mounting				$ 21.27
27B	134711000		Bracket, Control Panel, Right Hand, Mounting				$ 23.63
3A	137063600		Ring, Dryer Knob, White, Mist Function				$ 219.72
NIA	137150200		Terminal Block Kit, Main				$ 31.90
NIA	134926600		Damper, Sound				$ 14.18

    View Diagram in Separate Window       Print Part List
