SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor

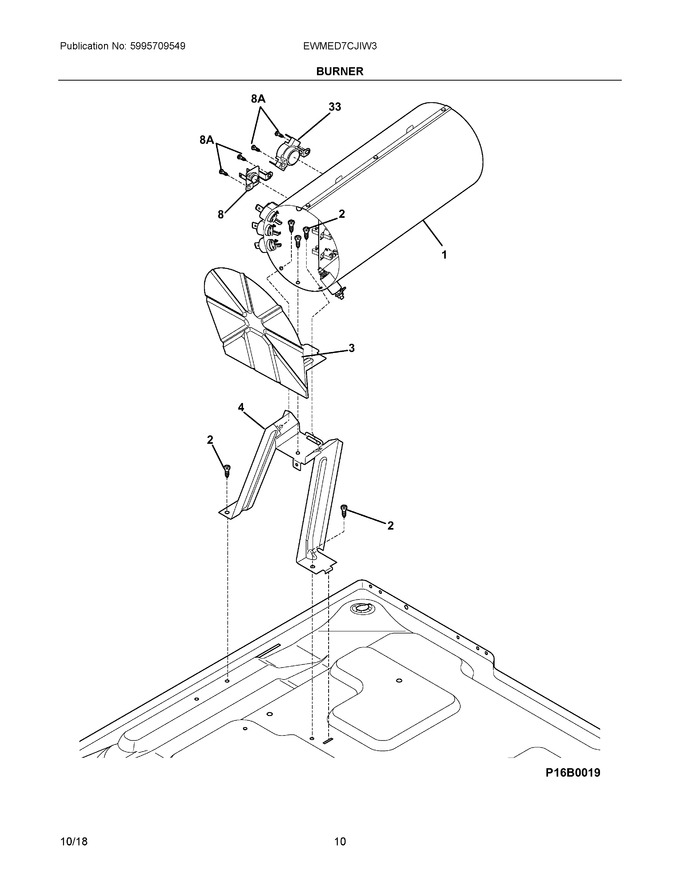

06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134792700		Heater, 3 Element, 5500w			Immediately	$ 242.60
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
3	134692701		Shield, Radiant, Electric   (Replaces: 134692700)				$ 65.79
4	134713900		Bracket, Heater/burner, Mounting		Appelez-nous	-
8	137032600		Limiter, Thermal, Heater			Immediately	$ 22.00
33	3204267		Thermostat, Safety			Immediately	$ 53.49
8A	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 13.46

    View Diagram in Separate Window       Print Part List
