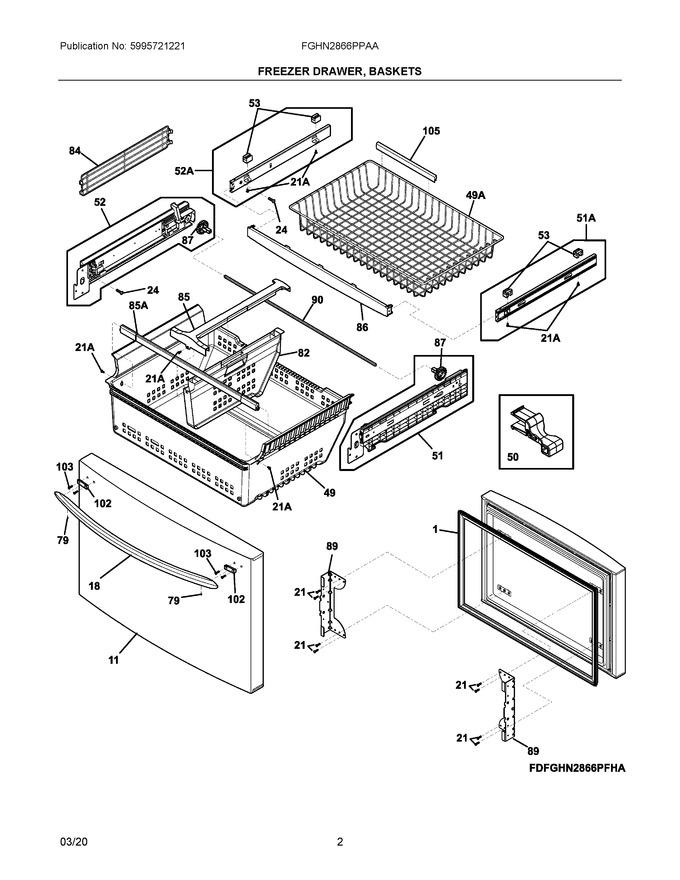

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket-frzr Drawer, White (Replaces: 5304502761) |
|
Immediately | $ 86.28 | ||||
| 11 | 241987910 | Door-frzr, White, Complete Assy |
|
$ 398.63 | |||||
| 18 | 242029402 | Handle-door, White |
|
$ 173.57 | |||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 49 | 5304525892 | Basket-frzr, Lower (Replaces: 5304503704) |
|
Immediately | $ 180.64 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 15.60 | ||||
| 51 | 5304502748 | Slide Assembly, Basket, Rh, Freezer Drawer |
|
$ 215.46 | |||||
| 52 | 5304502749 | Slide Assembly, Basket Lower, Lh, Freezer Drawer |
|
$ 214.75 | |||||
| 53 | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 82 | 5304503705 | Divider, Basket, Lower |
|
$ 118.36 | |||||
| 84 | 241780904 | Divider, Basket, Upper |
|
$ 71.29 | |||||
| 85 | 242130901 | Hanger, Basket, Lower |
|
$ 91.76 | |||||
| 86 | 5304507340 | Trim, Drawer, Stabilizer (Replaces: 241807605) |
|
Immediately | $ 45.55 | ||||
| 89 | 5304509676 | Bracket, Freezer Drawer, (2) (Replaces: 5304501269) |
|
$ 77.36 | |||||
| 90 | 242136901 | Bar-timing |
|
$ 35.45 | |||||
| 102 | 242029301 | Block-handle Mtg |
|
$ 24.80 | |||||
| 103 | 242077302 | Screw, #10 Ab Flat Hd |
|
Immediately | $ 7.79 | ||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 49A | 241780810 | Basket-frzr, Upper |
|
$ 214.80 | |||||
| 51A | 241894229 | Slide Assembly, Basket, Rh, Freezer Drawer |
|
$ 139.63 | |||||
| 52A | 241894230 | Slide Assembly, Basket, Lh, Freezer Drawer |
|
$ 146.01 | |||||
| 85A | 242139301 | Support-beam, Divider, Lower Basket |
|
$ 73.71 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| NIA | 242139201 | Spring-compression, Divider, Lower Basket |
|
$ 19.72 | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 | |||||
| NIA | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NIAA | 242039701 | Screw, Basket Slides |
|
$ 13.46 |
