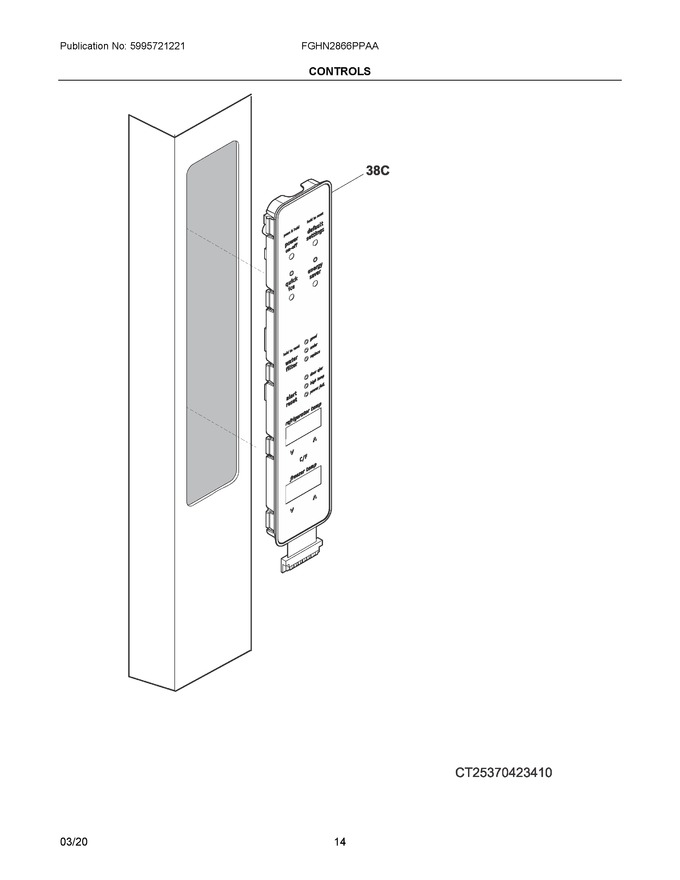

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38C	242048220		User Interface,, Assembly		Appelez-nous	-
NI	242045402		Harness-wiring, Door				$ 62.37
NI	241510904		Harness-dispenser, Grounding				$ 60.96
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
