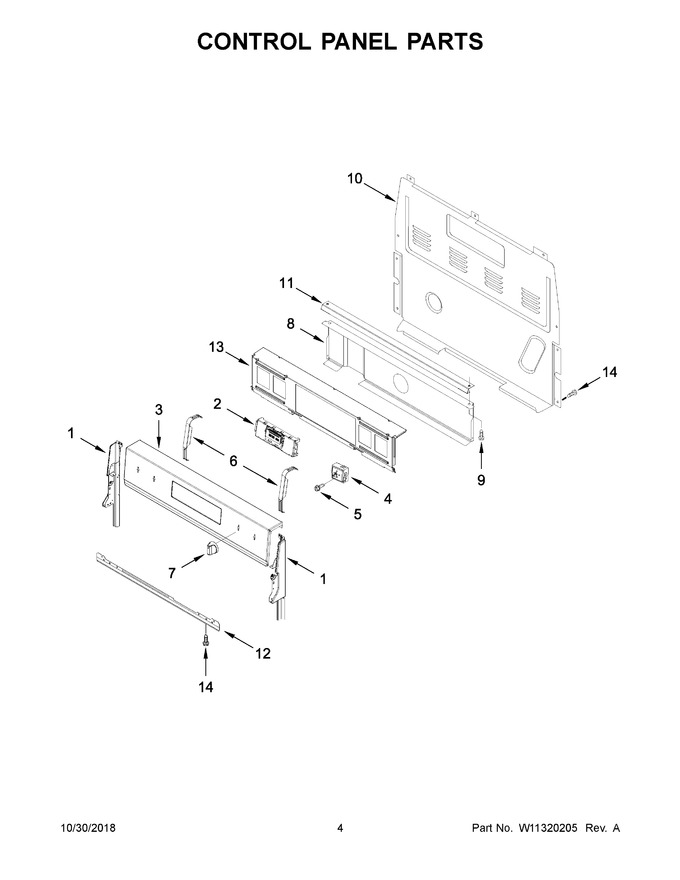

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 298.09
2	W11528249		Control, Electronic (lcx) (black)   (Replaces: W11204529)			Immediately	$ 262.84
3	W11182819		Console, Assembly (black)   (Replaces: W11089991)				$ 413.40
4	WPW10434452		Switch, Infinite (dual) (left Front And Right Front)   (Replaces: W10434452)			Immediately	$ 126.76
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
6	W10856361		Bracket, Control		Appelez-nous	-
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 72.02
8	W10134247		Shield, Heat			Immediately	$ 307.56
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W10525121		Bracket, Console Mounting				$ 84.73
12	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 190.66
13	W10901802		Panel, Backer				$ 80.93
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
12A	W11051311		Bracket, Eye Brow (white)				$ 78.28
1A	W11213292		Endcap (black (right))				$ 61.42
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 89.74
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 89.74
2A	W11546095		Control, Electronic (lcx) (white)   (Replaces: W11204530)			Immediately	$ 314.35
3A	W11182818		Console, Assembly (white)   (Replaces: W11089992)				$ 447.99
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 47.15
7A	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 18.46
