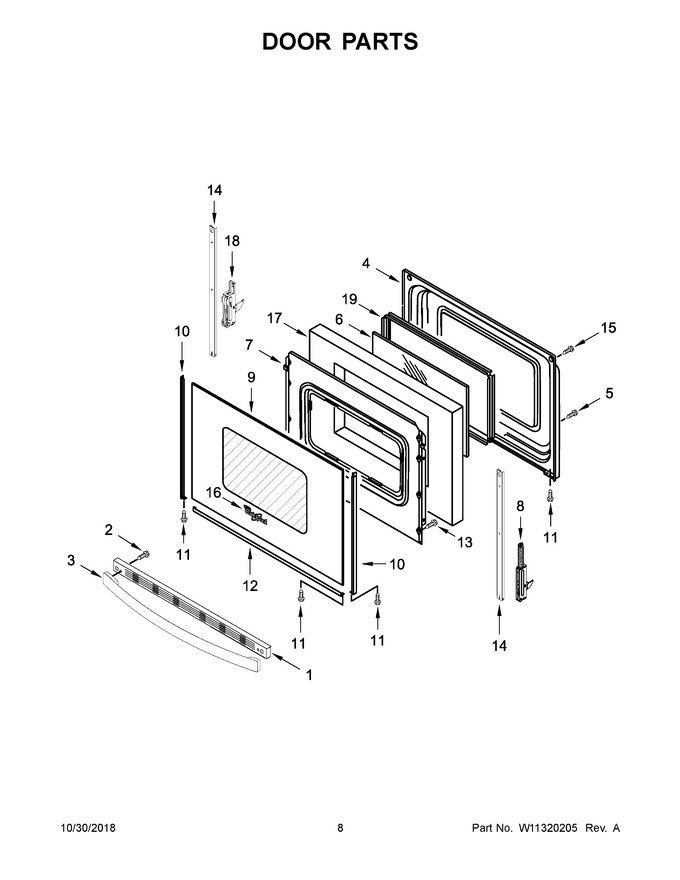

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 3 | W11553213 | Handle, Door (includes Standoff) (black) (Replaces: W11039068) |
|
Immediately | $ 200.03 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 160.45 | |||||
| 7 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 199.17 | |||||
| 8 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 65.48 | ||||
| 9 | W11702167 | Glass Assembly, Outer Door (black) (Replaces: W10884159) |
|
Immediately | $ 158.34 | ||||
| 10 | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 48.39 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 12 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 23.72 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.00 | ||||
| 16 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 17 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 86.89 | ||||
| 18 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 19 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 76.37 | ||||
| 10A | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 10B | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 10C | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12A | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 52.61 | ||||
| 1A | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 92.94 | ||||
| 3A | W11590861 | Handle, Door (includes Standoff) (white) (Replaces: W11039067) |
|
Immediately | $ 170.70 | ||||
| 9A | WPW10409945 | Glass Assembly, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 223.91 |
