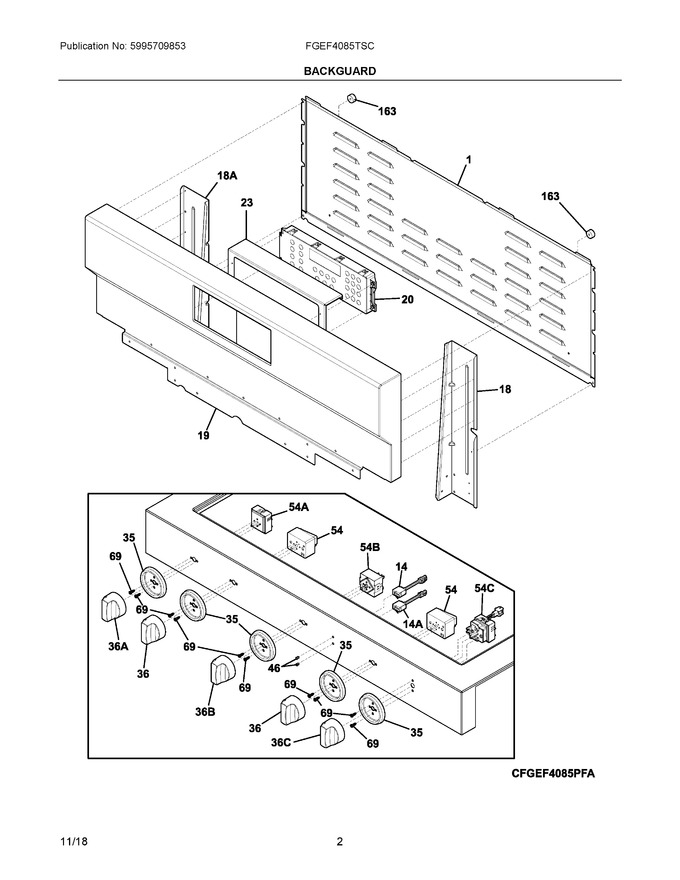

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508551		Panel, Rear Cover, Upper		Appelez-nous	-
14	316022511		Light, Indicator, Neon, 125v, W/jst Connector		Appelez-nous	-
18	808373701		Bracket, Support, Rh		Appelez-nous	-
19	5304504336		Panel, Backguard, Stainless		Appelez-nous	-
20	139058401		Control Assembly, Electronic, Es536w1, Black, W/touch Pad		Appelez-nous	-
23	807328502		Bracket, Control Mtg.		Appelez-nous	-
35	808312201		Skirt, Knob, Stainless		Appelez-nous	-
36	5304508561		Knob, Control, Stainless, Single		Appelez-nous	-
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
69	5304491110		Screw, Trus Hd Nickl, 8-32 X 1/4		Appelez-nous	-
163	318531700		Spacer, (2)		Appelez-nous	-
14A	316022512		Light, Indicator, Neon, 125v, W/amp Connector		Appelez-nous	-
18A	808373702		Bracket, Support, Lh		Appelez-nous	-
36A	5304508562		Knob, Control, Stainless, Dual		Appelez-nous	-
36B	5304508560		Knob, Control, Stainless, Warmer		Appelez-nous	-
36C	5304508563		Knob, Control, Stainless, Triple		Appelez-nous	-
54A	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
54B	5304508926		Switch, Infinite, Warmer			Immediately	$ 84.18
54C	5304490134		Switch, Infinite, Triple				$ 117.66
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
