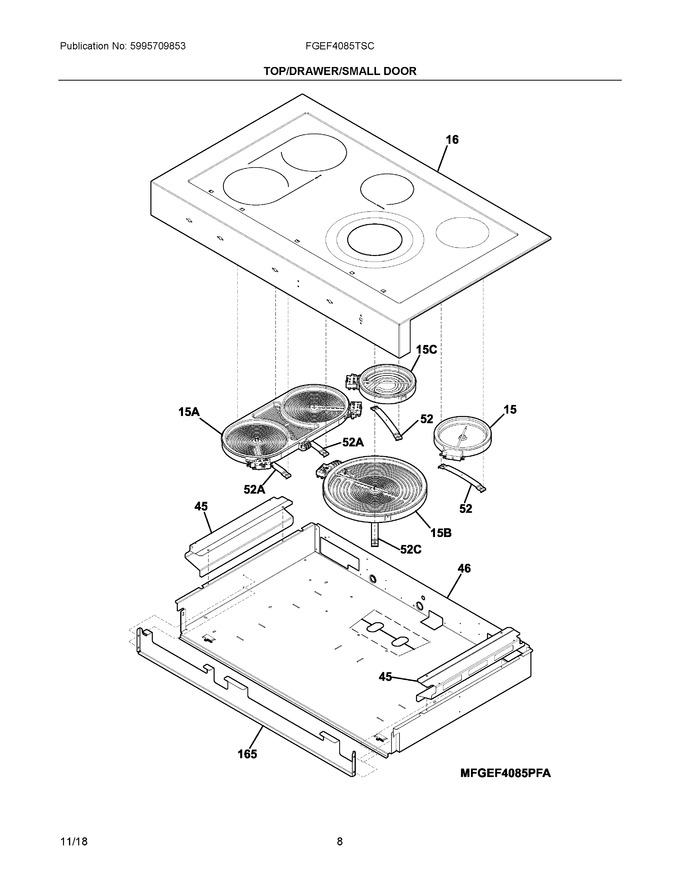

01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer/small Door
05 - Oven Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304509013 | Main Top, Assembly, Black/stainless |
|
- | |||||
| 45 | 807328401 | Bracket, Side Support |
|
- | |||||
| 46 | 807353603 | Box, Burner |
|
- | |||||
| 52 | 318122006 | Spring, Element Mtg, Small |
|
$ 66.25 | |||||
| 165 | 5304508549 | Support, Cooktop Glass |
|
- | |||||
| 15A | 807219901 | Element, Bridge, 1800/2600w |
|
Immediately | $ 309.02 | ||||
| 15B | 318297810 | Element, Triple, 1200/2000/3000w, 6"/9"/12 |
|
Immediately | $ 356.54 | ||||
| 15C | 140273621015 | Element, Surface, Warmer, 100 W (Replaces: 316289800) |
|
Immediately | $ 35.77 | ||||
| 52A | 318122008 | Spring, Element Mtg, 1800w/3000w |
|
$ 90.80 | |||||
| 52C | 318122011 | Spring, Element Mtg, 1200w/1800w |
|
$ 62.14 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
