01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

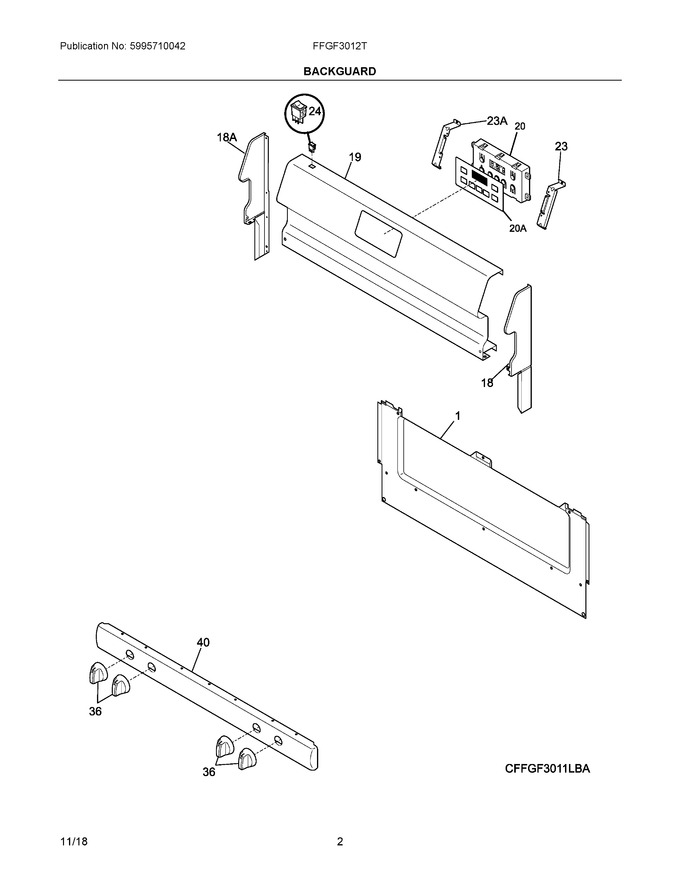

1	5303289640		Shield, Backguard, Rear Wall				$ 144.64
18	316263402		End Cap, Black, Rh		Appelez-nous	-
19	316263372		Panel, Backguard, Black		Appelez-nous	-
20	5304518661		Clock/timer, Electronic, Es100   (Replaces: 316455410)			Immediately	$ 148.07
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
23	316263500		Bracket, Clock Mtg, Rh		Appelez-nous	-
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 5304515139)			Immediately	$ 11.38
36	316543910		Knob, Top Valve, Black, (4)		Appelez-nous	-
40	316458049		Panel, Manifold, Black		Appelez-nous	-
18A	316263403		End Cap, Black, Lh		Appelez-nous	-
20A	316220729		Overlay, Clock, Black			Immediately	$ 26.93
23A	316263501		Bracket, Clock Mtg, Lh		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
