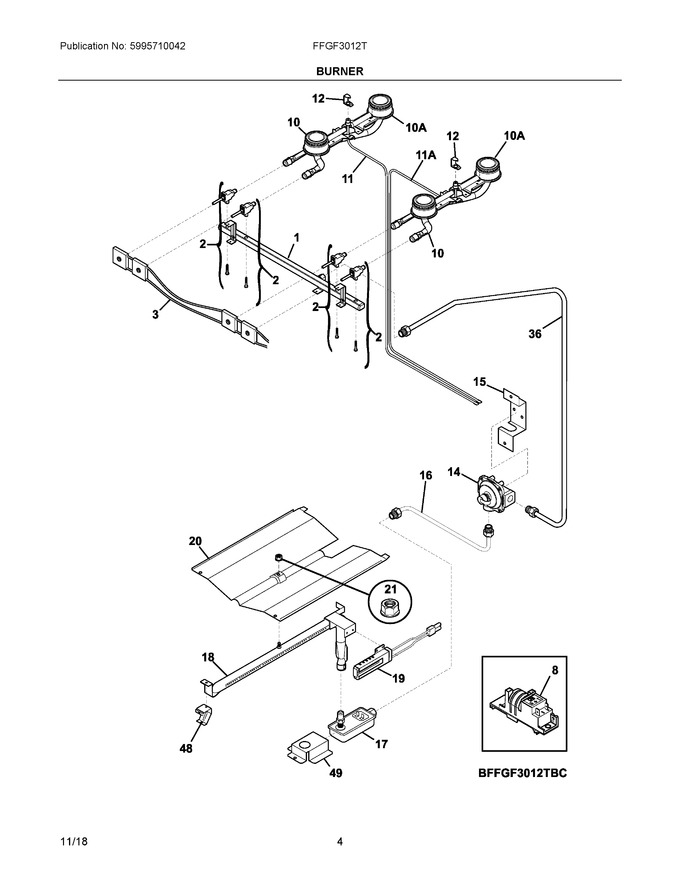

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506153		Manifold		Appelez-nous	-
2	5304506148		Valve, Top Burner		Appelez-nous	-
3	5304506156		Harness, Ignition		Appelez-nous	-
8	808608801		Spark Module				$ 71.78
10	5304506427		Top, Burner, Front				$ 101.63
11	316081704		Ignitor-top Burner, Top Burner, 33		Appelez-nous	-
12	3016993		Retainer, Ignitor		Appelez-nous	-
14	5304521339		Regulator, Pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket, Regulator				$ 73.56
16	316065006		Tube, Valve To Regul, 3/8				$ 122.09
17	3203459		Valve, Safety				$ 303.64
18	316114300		Burner, Oven				$ 169.88
19	5304509706		Ignitor, Oven Burner			Immediately	$ 189.59
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	5304507888		Tube, Regulator		Appelez-nous	-
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	5304506426		Top, Burner, Rear				$ 100.05
11A	316081705		Ignitor, Top Burner, 50				$ 94.27
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	GRLP5		Lp Conversion Kit   (Replaces: 316243723)			Immediately	$ 49.53
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
