SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

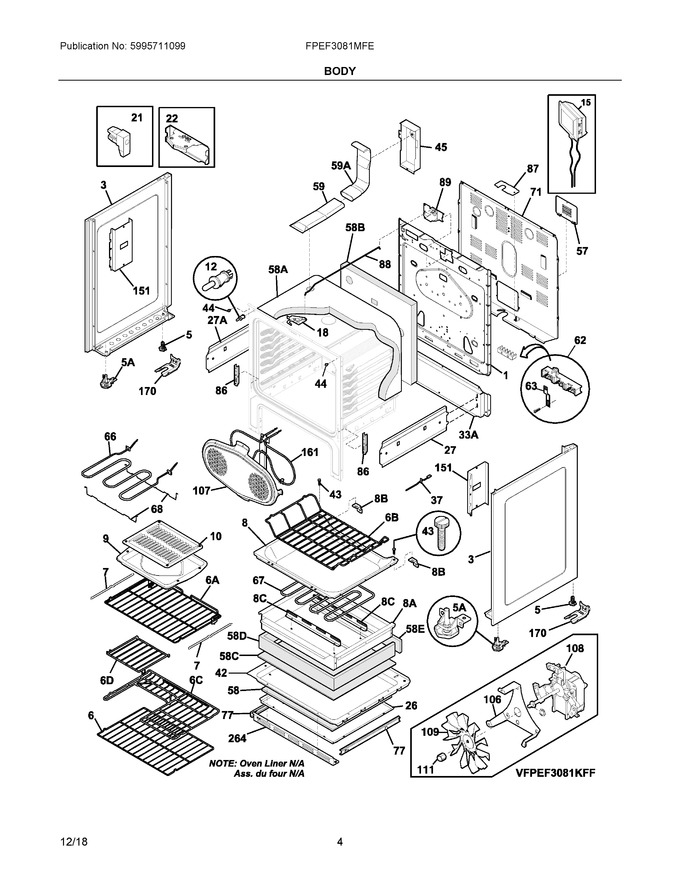

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316502006		Back, Main		Appelez-nous	-
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 134.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven   (Replaces: 316496207)			Immediately	$ 103.48
7	316546300		Link, Coupler, (2), Auto Rack			Immediately	$ 22.75
8	316549601		Bottom, Oven				$ 141.29
9	316081900		Pan, Broiler				$ 65.89
10	316082000		Insert, Broiler Pan				$ 68.85
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
15	5304523863		Lamp, Oven, (2), Halogen   (Replaces: 316510700)			Immediately	$ 69.01
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
26	316563200		Shield, Lower, Hidden Bake				$ 73.71
27	316572300		Shield, Warmer Side, Rh				$ 27.51
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
42	316564301		Shield, Wool, Lower, Hidden Bake				$ 112.19
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
45	316234100		Shield, Wire, Vent Tube				$ 70.16
57	316283600		Cover, Access				$ 12.50
58	316565500		Insulation, Lower, Hidden Bake				$ 69.46
59	316208401		Vent Tube, Assembly, W/catalyst				$ 194.14
62	5303935271		Terminal Block Kit				$ 73.56
63	316542600		Plate, Grounding Strap		Appelez-nous	-
66	316430900		Element, Broil, 4000w			Immediately	$ 256.20
67	316563600		Element, Hidden Bake				$ 242.67
68	316429100		Support, Element, Broil				$ 62.51
71	316283204		Shield, Rear Wall				$ 56.12
77	316456700		Glide, Warmer Drawer, Outer/rh & Lh, (2)			Immediately	$ 60.96
86	316441300		Receptacle, Hinge				$ 21.97
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
88	316203500		Rod, Auto Latch				$ 72.30
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316504603		Cover, Fan				$ 84.68
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	316404601		Shield, Bodyside				$ 21.27
161	316506100		Element, Convection				$ 148.84
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
264	316570901		Shield, Front Frame, Black				$ 25.52
27A	316572301		Shield, Warmer Side, Lh				$ 28.25
33A	316402100		Shield, Rear Wall, Lower				$ 47.30
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 133.93
58A	316406604		Insulation, Oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406504		Insulation, Oven Back		Appelez-nous	-
58C	316565400		Insulation, Sump, Hidden Bake				$ 50.19
58D	316565200		Insulation, Front & Sides, Hidden Bake				$ 35.44
58E	316565300		Insulation, Rear, Hidden Bake				$ 19.85
59A	316208304		Tube, Oven Vent, Upper				$ 80.09
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	316577800		Rack, Oven, Auto   (Replaces: 316556500)				$ 243.43
6B	316575600		Rack, Oven, Deep Sump				$ 143.96
6C	316425600		Rack, Half, Oven				$ 254.73
6D	316419400		Rack, Half Insert, Oven				$ 209.58
8A	316563501		Base, Element, Hidden Bake				$ 167.45
8B	316563400		Bracket, Support, Oven Bottom, (2)				$ 10.63
8C	316505801		Support, Element				$ 25.48
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316525631		Harness, Wiring, Bake Element, Connector				$ 36.86
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316247300		Catalyst, Oven Vent, Ceramic				$ 99.23
NI	316506259		Wiring Harness, Main				$ 240.40
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 38.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316565600		Bracket, Bake Element				$ 10.61
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	316541700		Template, Anti-tip		Appelez-nous	-
NIC	316542200		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
