SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

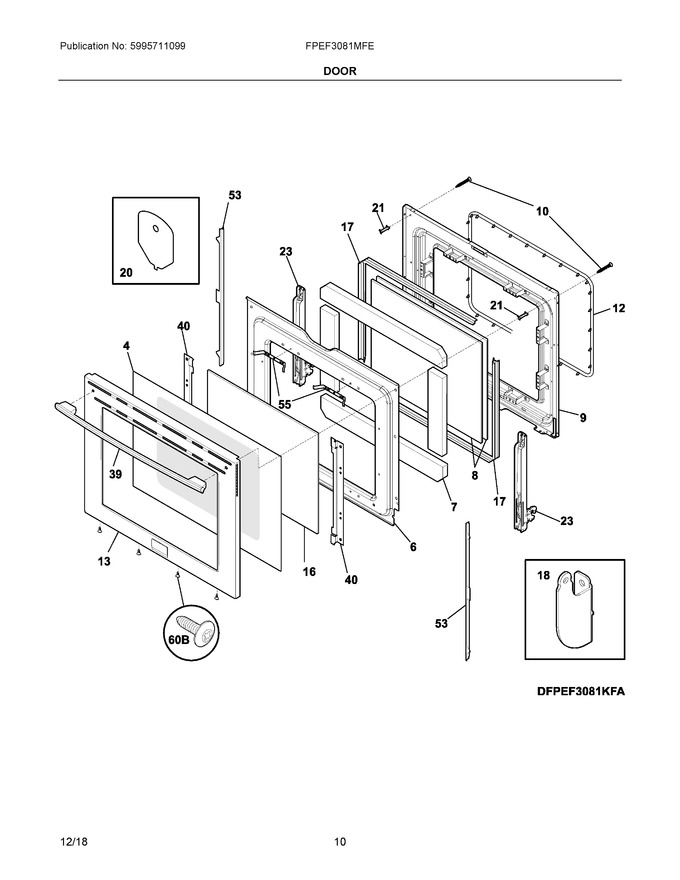

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452721		Glass, Oven Door, Grey, W/foil				$ 206.01
6	316503800		Shield, Wool				$ 106.89
7	316513000		Insulation, Oven Door				$ 81.50
8	316502500		Glass, Door, Inner, (2)			Immediately	$ 115.65
9	316503618		Liner, Oven Door				$ 133.25
10	316516802		Screw, Truss Hd, 10-24 X 3, (2)				$ 18.21
12	316405000		Seal, Oven Door			Immediately	$ 179.17
13	316571404		Panel Assembly,, Door, Stainless, Outer, W/badge				$ 90.25
16	316502601		Glass, Door, Airwash, Hbii			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass				$ 25.79
18	316547900		Link, Door, (2), Auto Rack				$ 20.56
20	316533801		Plate, Distribution, Load			Immediately	$ 5.67
21	316284100		Spacer, Door Handle, (2)				$ 14.89
23	316575908		Hinge, Oven Door, Teal				$ 145.44
39	5304532118		Handle, Door/drawer, Stainless   (Replaces: 316551501)				$ 112.88
40	316530403		Bracket-airwash Glass Wash				$ 33.18
53	5304532042		Shield, Door Filler, Black, (2)   (Replaces: 316408201)				$ 25.79
55	316530800		Bracket, Glass Spacer, (4)				$ 23.15
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316001013		Screw, Wafer Head, 10-24 X 1.375, Handle Mtg.			Immediately	$ 2.41
NIA	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34

    View Diagram in Separate Window       Print Part List
