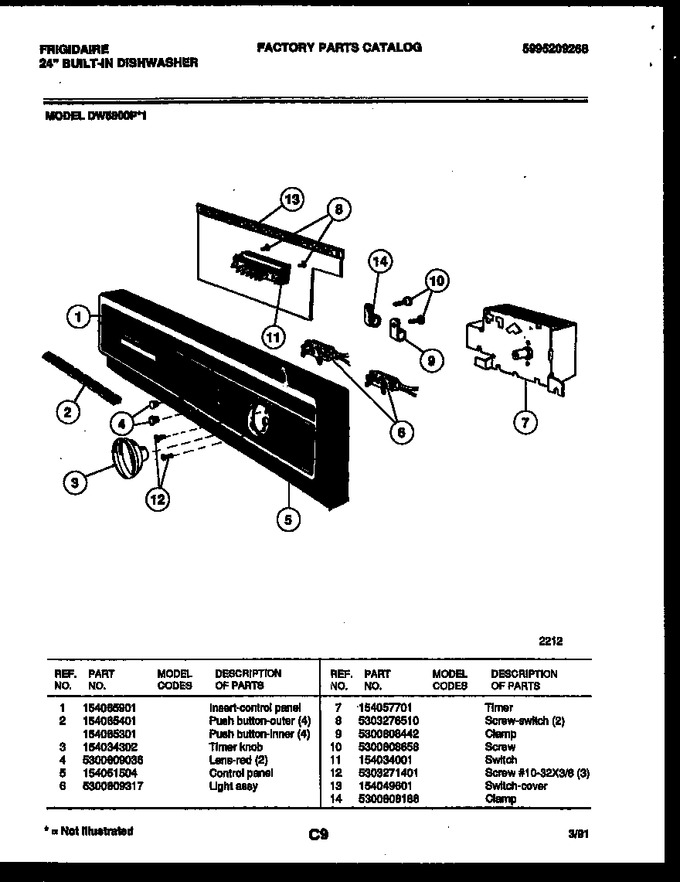

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154065901 | Insert-control Panel |
|
- | |||||
| 2 | 154065301 | Push Button-inner (4) |
|
- | |||||
| 2 | 154065401 | Push Button-outer (4) |
|
- | |||||
| 3 | 154034302 | Timer Knob |
|
- | |||||
| 4 | 5300809036 | Lens-red (2) |
|
$ 20.90 | |||||
| 5 | 154051504 | Control Panel |
|
- | |||||
| 6 | 5300809317 | Light Assy |
|
- | |||||
| 7 | 154057701 | Timer |
|
- | |||||
| 8 | 5303276510 | Screw-switch (2) |
|
- | |||||
| 9 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 10 | 154419403 | Screw (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 11 | 154034001 | Switch |
|
- | |||||
| 12 | 5303271401 | Screw 10-32 X 3/8 (3) |
|
- | |||||
| 13 | 154049601 | Switch-cover |
|
- | |||||
| 14 | 5300808186 | Clamp |
|
- |
