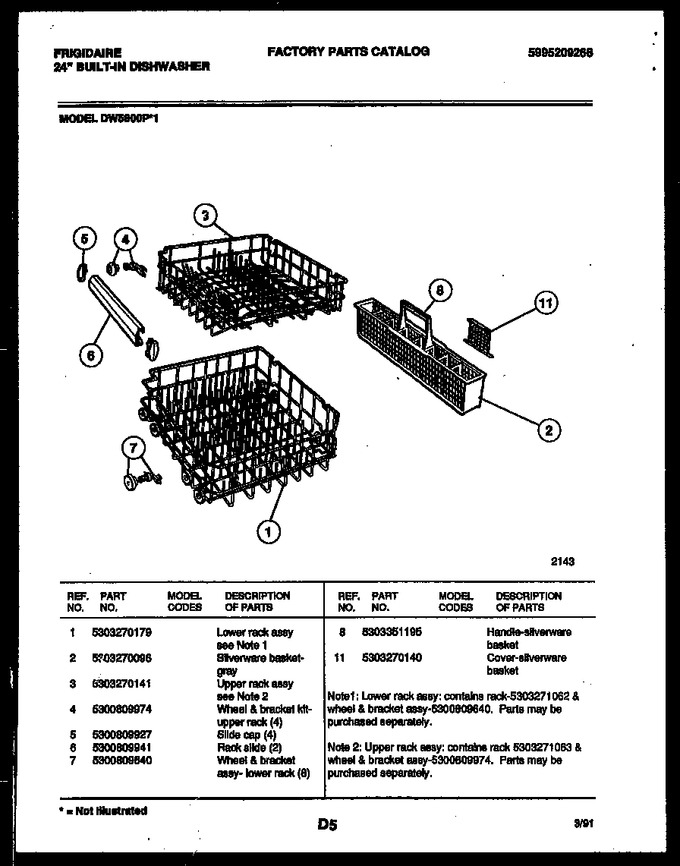

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270179 | Lower Rack Assy (lower Rack Assy: Contains Rack-53032710 |
|
- | |||||
| 2 | 5304509753 | Silverware Basket-gray (Replaces: 5303270096) |
|
Immediately | $ 36.87 | ||||
| 3 | 5303270141 | Upper Rack Assy (upper Rack Assy: Contains Rack 53032710 |
|
$ 117.86 | |||||
| 4 | 5304535381 | Wheel & Bracket Kit - Upper Rack (4) (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide (2) |
|
- | |||||
| 7 | 5304532229 | Wheel & Bracket Assy - Lower Rack (8) (Replaces: 5300809640) |
|
Immediately | $ 12.75 | ||||
| 8 | 5303351195 | Handle-silverware Basket |
|
- | |||||
| 11 | 5303270140 | Cover-silverware Basket |
|
- |
