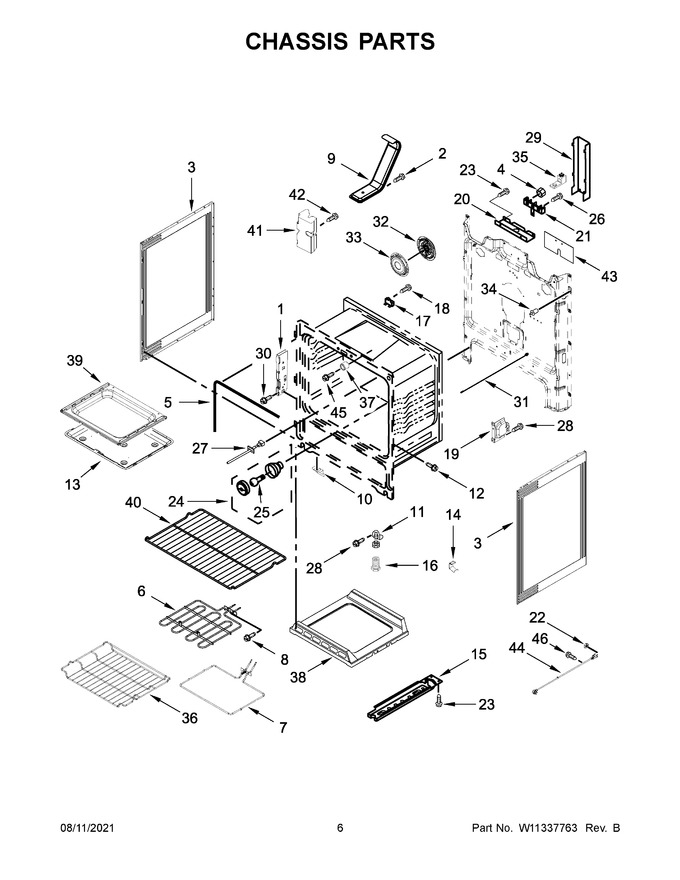

04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
2	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 148.35
4	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 6.98
5	W11562931		Gasket, Door   (Replaces: W11491752)			Immediately	$ 78.98
6	W11321472		Element, Broil   (Replaces: W11095929)			Immediately	$ 101.29
7	W10779716		Element, Bake   (Replaces: W10774342)			Immediately	$ 55.31
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
9	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 225.43
10	W10035900		Support, Oven Bottom				$ 12.31
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
12	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
13	W11379357		Bake Pan			Immediately	$ 71.02
14	W10137382		Clip, Panel			Immediately	$ 41.50
15	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 53.71
16	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
17	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
18	3196172		Screw			Immediately	$ 11.55
19	W10273002		Bracket, Oven Support				$ 65.43
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 27.12
22	7103P02760		Nut		Appelez-nous	-
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
24	W11594027		Light Assembly   (Replaces: W11175594)			Immediately	$ 78.31
25	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
26	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
27	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 126.64
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
29	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 119.66
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
31	W11370463		Rod, Door Switch			Immediately	$ 57.32
32	W11527111		Fan, Convection   (Replaces: W11353930)			Immediately	$ 141.23
33	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 66.57
34	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 130.00
35	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.61
36	W11256463		Rack, Oven (gull-wing)   (Replaces: W10289145)			Immediately	$ 119.25
37	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 48.05
38	W10726740		Shield, Heat				$ 124.31
39	W10777210		Bottom, Oven   (Replaces: W10774446)			Immediately	$ 147.80
40	WPW10531060		Rack, Oven   (Replaces: W10531060)			Immediately	$ 109.94
41	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 131.81
42	W11135756		Screw   (Replaces: W11034869)				$ 12.63
43	W10655441		Shield, Power Cord			Immediately	$ 123.74
44	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 65.69
45	W11169708		Screw   (Replaces: 3196560)				$ 13.36
46	W11244557		Screw   (Replaces: 3196173)				$ 12.25
15A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 53.71
NI	NP		Refrigerant Charge 5.75 Oz. (r-134a)		Appelez-nous	-
NI	WPW10194393		Insulation, Wrap   (Replaces: W10194393)				$ 110.70
NI	WPW10225523		Insulation, Bottom   (Replaces: W10225523)				$ 103.07
NI	4820F01559		Insulation, Strap		Appelez-nous	-
NI	WPW10225524		Insulation, Back   (Replaces: W10225524)				$ 98.30
