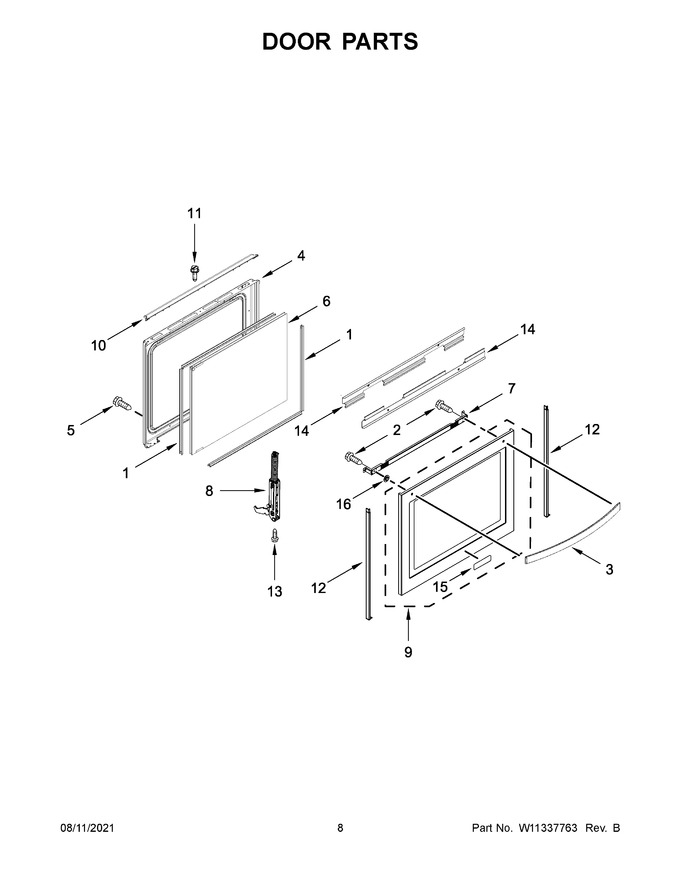

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 26.60 | ||||
| 2 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.16 | ||||
| 3 | W11107877 | Handle, Door (stainless) (Replaces: W10918786) |
|
Immediately | $ 226.93 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 282.60 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 146.72 | |||||
| 7 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 34.22 | ||||
| 8 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 9 | W11106273 | Glass Assembly, Outer Door (stainless) (Replaces: W10864214) |
|
$ 422.14 | |||||
| 10 | W11182113 | Vent, Trim (black) (Replaces: W10887939) |
|
$ 116.32 | |||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 65.30 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 14 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 151.89 | ||||
| 15 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 12.69 | ||||
| 3A | W11110500 | Handle, Door (black Stainless) (Replaces: W10903342) |
|
$ 167.59 | |||||
| 9A | W11107401 | Glass Assembly, Outer Door (black Stainless) (Replaces: W10888239) |
|
$ 506.64 |
