SELECT A DIAGRAM

01 - Console


02 - Tub, Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness

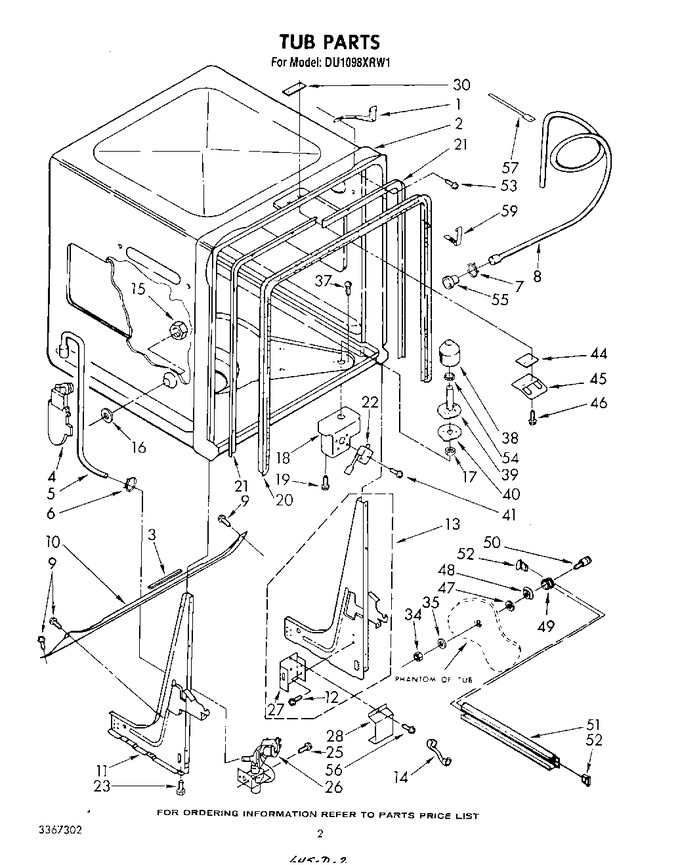

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300796		Bracket, Mounting (2)		Appelez-nous	-
2	3367464		Tub Assembly		Appelez-nous	-
3	303294		Edge Protector		Appelez-nous	-
4	300974		Inlet, Water		Appelez-nous	-
5	304670		Hose, Inlet				$ 67.52
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	303452		Hose, Drain		Appelez-nous	-
9	WP302868		Screw, 8-18 X 1/2 Hex-head Tapping (4)   (Replaces: 302868)			Immediately	$ 6.98
10	303111		Brace		Appelez-nous	-
11	3367284		Leg & Hinge Assembly, L.h.		Appelez-nous	-
12	718178		Screw, 8-32 X 3/8 Hex Washer Head Slotted Tapping Ground (1)		Appelez-nous	-
13	3367538		Leg & Hinge Assembly, R.h.		Appelez-nous	-
14	717563		Relief, Strain		Appelez-nous	-
15	713799		Nut, 7/8-16 Polypropylene (1)		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, 1/8 Self-threading (1)				$ 12.83
18	719342		Bracket, Overflow		Appelez-nous	-
19	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (3)		Appelez-nous	-
20	302090		Gasket (alternate)		Appelez-nous	-
20	302091		Gasket (alternate)		Appelez-nous	-
21	302093		Retainer (r.h.)		Appelez-nous	-
21	302094		Retainer (l.h.)		Appelez-nous	-
22	301671		Switch, Pressure (alternate)		Appelez-nous	-
22	301672		Switch, Pressure (alternate)		Appelez-nous	-
22	304589		Switch, Pressure (alternate)		Appelez-nous	-
23	8193716		Leveling Leg   (Replaces: 302849)			Immediately	$ 76.25
25	WP90767		Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
26	303650		Valve, Water Inlet (alternate)				$ 76.90
26	DW-66		Valve, Water Inlet (alternate)   (Replaces: 300453)				$ 63.58
27	300067		Box, Terminal		Appelez-nous	-
28	300068		Cover, Terminal Box				$ 30.14
30	303080		Nut, Twin Spring		Appelez-nous	-
34	718829		Locknut, 10-32 (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2 Pan Head Tapping (1)   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	302203		Screw, 4-40 X 9/16 Hex Head Slotted Thread Cutting (1)		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 9416643)			Immediately	$ 7.08
47	718750		Washer (8)		Appelez-nous	-
48	718817		Washer, Cup (8)		Appelez-nous	-
49	300844		Wheel Assembly (8)		Appelez-nous	-
50	712499		Screw, Shoulder (8)		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	719266		Screw, 8-18 X 5/8 Indented Hex Head (10)		Appelez-nous	-
54	301662		Gasket (2)		Appelez-nous	-
55	301656		Insert, Cup-hose		Appelez-nous	-
56	WP90767		Screw, 8a X 3/8 Hex Head Tapping (1)   (Replaces: 90767)			Immediately	$ 7.04
57	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
59	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
59	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
59	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
59	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
59	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
59	301663		Clip, Gasket		Appelez-nous	-
59	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
59	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
59	261890		Golden Harvest		Appelez-nous	-
59	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)			Immediately	$ 51.34
59	350942		Primer (white)   (Replaces: 206922)				$ 80.69
59	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
59	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
59	799340		Black (uncut)		Appelez-nous	-
59	261891		Golden Harvest (uncut)		Appelez-nous	-
59	675476		Vinyl Touch Up (blue)		Appelez-nous	-
59	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	LIT3367224		Instructions, Installation		Appelez-nous	-
	LIT304274		Guide, Use & Care		Appelez-nous	-
	LIT304671		Tag, Energy Fact		Appelez-nous	-
	LIT3367302		List, Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
