SELECT A DIAGRAM

01 - Console


02 - Tub, Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness

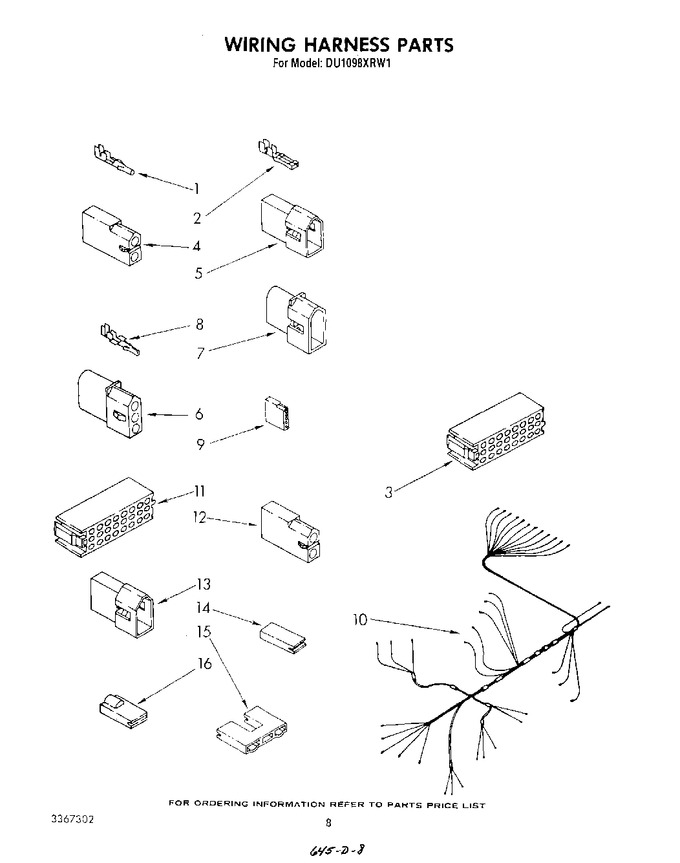

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
2	352088		Terminal, Female				$ 5.83
3	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
4	717252		Receptacle, Terminal (2-way)		Appelez-nous	-
5	717253		Plug, Terminal		Appelez-nous	-
6	353425		Receptacle, Terminal (3-way)		Appelez-nous	-
7	353424		Plug, Terminal				$ 18.95
8	94613		Terminal		Appelez-nous	-
9	719585		Receptacle (5-circuit)		Appelez-nous	-
10	302344		Harness, Wiring		Appelez-nous	-
11	352090		Disconnect Block		Appelez-nous	-
12	717251		Receptacle Terminal (2-way) Red		Appelez-nous	-
13	717250		Plug, Terminal Red		Appelez-nous	-
14	301219		Connector Block		Appelez-nous	-
15	300708		Connector Block		Appelez-nous	-
16	358736		Insulator .250 Terminal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
