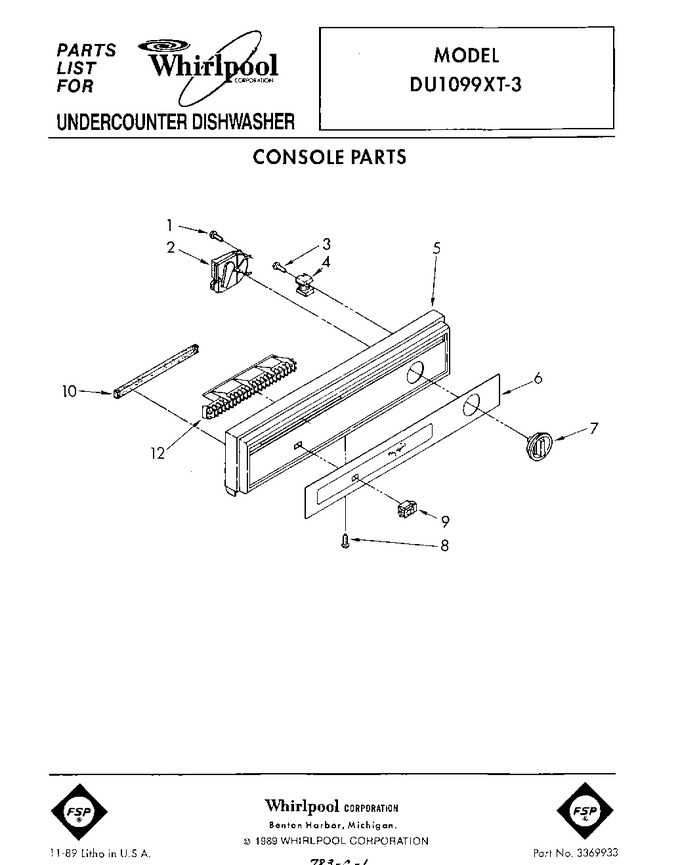

01 - Console
02 - Tub , Literature And Optional
03 - Door
04 - Dishrack
05 - Pump And Motor
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP304231 | Screw, 8-16 X 1/2 Slot Hex Wash Hd (3) (Replaces: 304231) |
|
Immediately | $ 6.98 | ||||
| 2 | 3370001 | Timer |
|
$ 2,179.14 | |||||
| 3 | 304232 | Screw, 7-18 X 1-1/4 Slot Hex Wash Hd |
|
- | |||||
| 4 | 304409 | Relay, Start |
|
- | |||||
| 5 | 3368120 | Console (includes Illus. 6 & 12) |
|
- | |||||
| 6 | 3368117 | Insert, Decorative |
|
- | |||||
| 7 | 3367282 | Knob, Timer |
|
- | |||||
| 8 | WP488729 | Screw, 8-18 X 1/2 Phlps Truss Hd Hi-lo (2) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 9 | WP4314961 | Rocker Switch (Replaces: 661520) |
|
$ 80.53 | |||||
| 10 | 3368537 | Seal, Foam |
|
- | |||||
| 12 | 304602 | Grill, Vent |
|
- |
