Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP94614 Terminal (female)   (Replaces: 94614) Special Order $ 6.90

2 352088 Terminal, Female Special Order $ 5.83

3 94613 Terminal Appelez-nous -
4 719585 Receptacle (5-circuit) Appelez-nous -
5 719584 Cap, 5 Pin Appelez-nous -
6 301219 Connector Block Appelez-nous -
7 300708 Terminal Insulator Appelez-nous -
8 358736 Insulator .250 Terminal Appelez-nous -
10 3368868 Harness, Wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

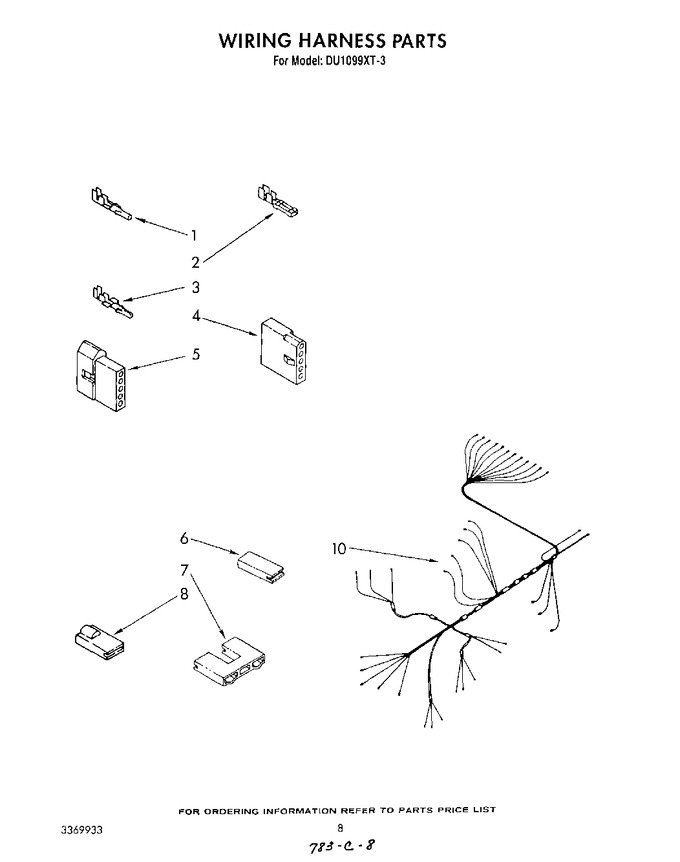

Diagram for DU1099XT3
