Agitator, Fabric Softener Dispenser, Drive Bell, Hub and lip seal kit and washtub (drawing 2 Of 2)


Belt, Pump And Idler Assembly (drawing 4 Of 4)


Fill Hose And Mixing Valve-to-tub Cover Hose - All models except awz53n*-1102 and awna62sn301aw01


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel, Control Support Panel And Controls (drawing 8 of 9)


Idler Lever And Belt Kit


Lid Switch Assembly


Mixing Valve - All models except awz53n*-1102 and awna62sn301aw01


Mixing Valve And Motor Connection Blocks, Terminals and extractor tool


Motor And Mounting Bracket (drawing 3 Of 3)


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight (drawing 1 Of 2) (models With The Letter “n” In The 3rd Or 6th Character Of The Model Number Except Awna62sn301aw01)


Power Cord


Shipping Materials And Special Tools


Special Tools


Terminals


Terminals And Clips


Top, Lid And Lid Lock


Transmission Assembly (drawing 1 Of 2)


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires (drawing 1 Of 3)


Wire Harnesses And Wires (drawing 2 Of 3)


Wire Harnesses And Wires (drawing 3 Of 3)

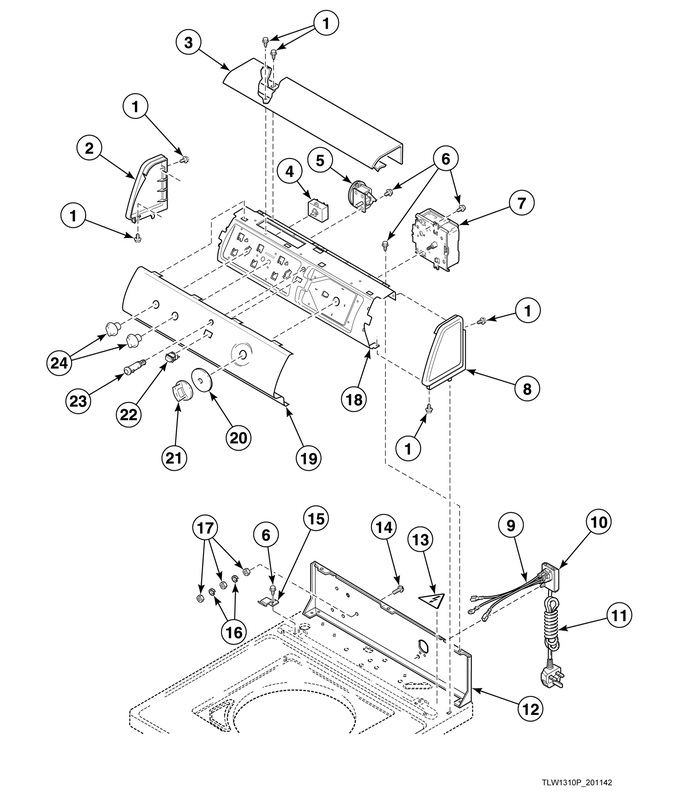

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D501086		Screw			Immediately	$ 6.95
2	D504009WP		End Panel (comment: White; Left)			Immediately	$ 22.20
2	N/A		End Panel (comment: Almond; Left)		Appelez-nous	-
2	D504009QP		End Panel (comment: Bisque; Left)		Appelez-nous	-
3	39905W		Top Cover (comment: White)				$ 48.89
3	COMM PART		Top Cover (comment: Bisque)   (Replaces: 39905Q)		Appelez-nous	-
3	N/A		Top Cover (comment: Almond)		Appelez-nous	-
4	35115		Temperature Switch (comment: 3 Position)				$ 30.67
5	39286P		Pressure Switch				$ 128.41
6	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.04
7	200885P		Timer				$ 317.56
8	D504008WP		End Panel (comment: White; Right)				$ 19.23
8	D504008L		End Panel (comment: Almond; Right)		Appelez-nous	-
8	D504008QP		End Panel (comment: Bisque; Right)			Immediately	$ 23.09
9	39923		Lead-in Wire Harness Assembly				$ 32.57
10	39922		Cable Connection Box		Appelez-nous	-
11	39925		Power Cord Assembly		Appelez-nous	-
12	39921		Hood Back Panel				$ 51.52
13	D502511		Electrical Shock Label		Appelez-nous	-
14	28448		Screw		Appelez-nous	-
15	35358		Hold-down Clip				$ 6.95
16	28449		Washer		Appelez-nous	-
17	28447		Nut		Appelez-nous	-
18	38171		Control Support Panel				$ 46.87
19	200679W		Graphic Panel		Appelez-nous	-
20	36700W		Timer Skirt Assembly (comment: White)				$ 11.93
20	36700Q		Timer Skirt Assembly (comment: Bisque)				$ 13.14
20	N/A		Timer Skirt Assembly (comment: Almond)		Appelez-nous	-
21	201501Q		Timer Knob (comment: Bisque)				$ 15.22
21	201501W		Timer Knob (comment: White)			Immediately	$ 16.52
22	801434Q		Push-to-start Switch (comment: Bisque)		Appelez-nous	-
22	801434W		Push-to-start Switch (comment: White)			Immediately	$ 22.66
23	39536		Lid Switch Indicator Light		Appelez-nous	-
24	36701L		Knob Assembly (comment: Almond)				$ 14.80
24	36701Q		Knob Assembly (comment: Bisque)				$ 20.27
24	WP36701W		Knob Assembly (comment: White)   (Replaces: 36701W)			Immediately	$ 44.31
