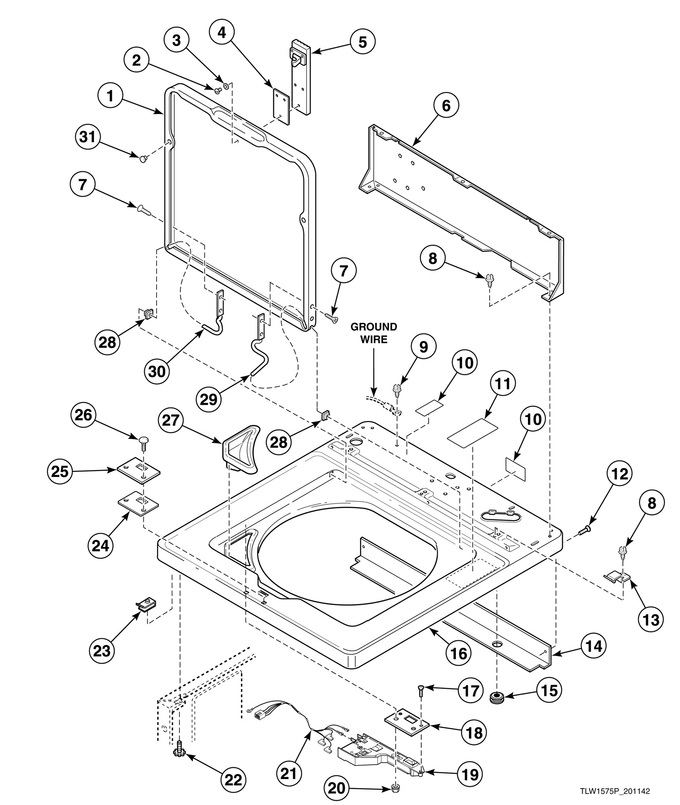

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33552W		Lid (comment: White)				$ 241.68
1	33552Q		Lid (comment: Bisque)		Appelez-nous	-
1	N/A		Lid (comment: Almond)		Appelez-nous	-
2	Q6695		Screw (comment: Use With Old Latch)		Appelez-nous	-
3	N/A		Washer (comment: Use With Old Latch)		Appelez-nous	-
4	N/A		Door Latch Gasket (comment: Use With Old Latch)		Appelez-nous	-
4	201414		Door Lock Spacer		Appelez-nous	-
5	201307P		Lid Lock Catch Assembly (comment: Includes Item 4 And Attaching Hardware)		Appelez-nous	-
6	39921		Hood Back Panel (comment: Models Starting Serial No. 00062000)				$ 51.52
6	37782		Hood Back Panel (comment: Models Through Serial No. 00061999)				$ 26.14
7	WPW10119828		Screw   (Replaces: 34337)			Immediately	$ 6.47
8	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.04
9	Sub. To D513139P		Screw   (Replaces: 52909)		Appelez-nous	-
10	D502511		Electrical Shock Label		Appelez-nous	-
11	36592		Warning Sticker		Appelez-nous	-
12	431287		Screw				$ 9.22
13	35358		Hold-down Clip				$ 6.95
14	39744		Top Shield		Appelez-nous	-
15	80262		Grommet				$ 1.58
16	N/A		Top Assembly (comment: Models Through Serial Nos. Beginning 0405)		Appelez-nous	-
16	201458WP		Top Assembly (comment: Models Starting Serial Nos. Beginning 0405)				$ 359.91
17	22649		Screw (comment: Use With Old Lock)		Appelez-nous	-
17	202623		Screw				$ 1.83
18	29676		Switch Mounting Plate		Appelez-nous	-
19	COMM PART		Lid Lock Kit   (Replaces: 202933)		Appelez-nous	-
20	22001		Nut				$ 99.72
21	31973		Lid Lock Wire Harness Assembly		Appelez-nous	-
22	23008		Screw				$ 6.95
23	36020		Nut			Immediately	$ 6.95
24	30378		Lid Lock Gasket		Appelez-nous	-
25	37828P		Cover Plate		Appelez-nous	-
26	32184		Bolt		Appelez-nous	-
27	34776		Bleach Dispenser (comment: Models Through Serial Nos. Beginning 0405)				$ 14.04
28	33446		Bushing			Immediately	$ 6.95
29	DE81-10050A		Lid Hinge (comment: Right)   (Replaces: 36437)				$ 33.80
30	36438		Lid Hinge (comment: Left)				$ 8.06
31	21685		Bumper			Immediately	$ 6.95
NA	837P3		Lid Lock Kit (comment: Includes Items 5, 17 And 19)				$ 286.43
